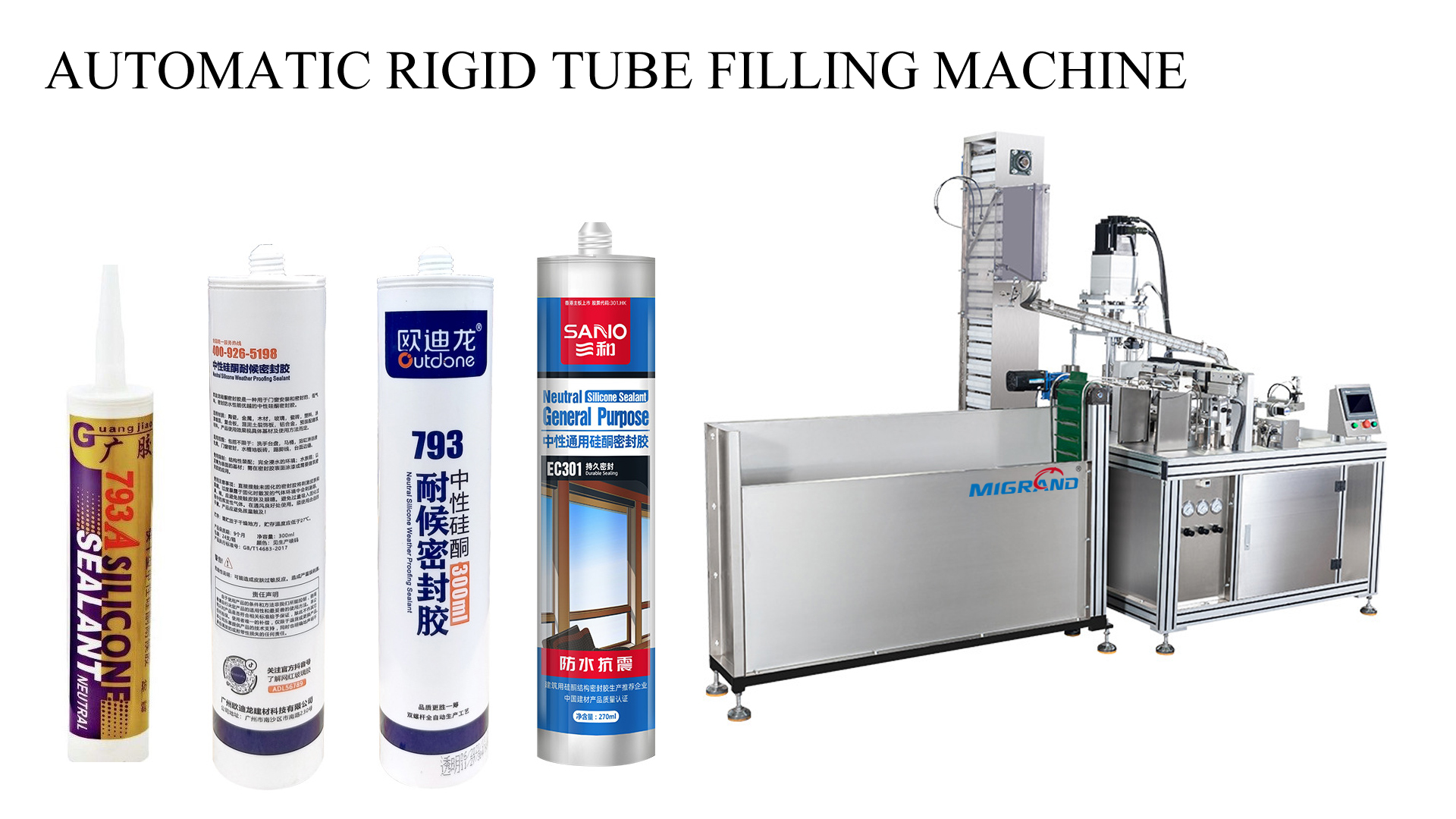

1. Suitable for filling paste - like materials such as silicone sealants, MS sealants, water - based adhesives, and lubricating greases.
2. Adhesive 300ML rigid tube models (GDT-30H3- 1; GDT-30H3 - 2; GDT-30H3 - 3; GDT-60H3 - 2S).
3. Lubricating grease 400ML rigid tube models (GDT-30H4- 1; GDT-30H4 - 2; GDT-60H4 - 2S).
4. Models 1 - 3: The filling speed is 25 - 35 tubes per minute. There are 1 - 3 workstations available for selection, and it can realize the filling of several varieties of materials with easy switching.
5. Model 2S: The filling speed is 45 - 60 tubes per minute, suitable for single - variety material filling.
6. Horizontal or vertical models (for flowing materials).
7. Measurement accuracy: ±0.5%.
8. One machine can automatically complete tube feeding, cap feeding, quantitative filling, filament cutting, cap pressing, and code spraying.
9. Automatic code spraying (the code - spraying machine should be provided by the customer).
10. Equipped with comprehensive detection, alarm, and shutdown functions.

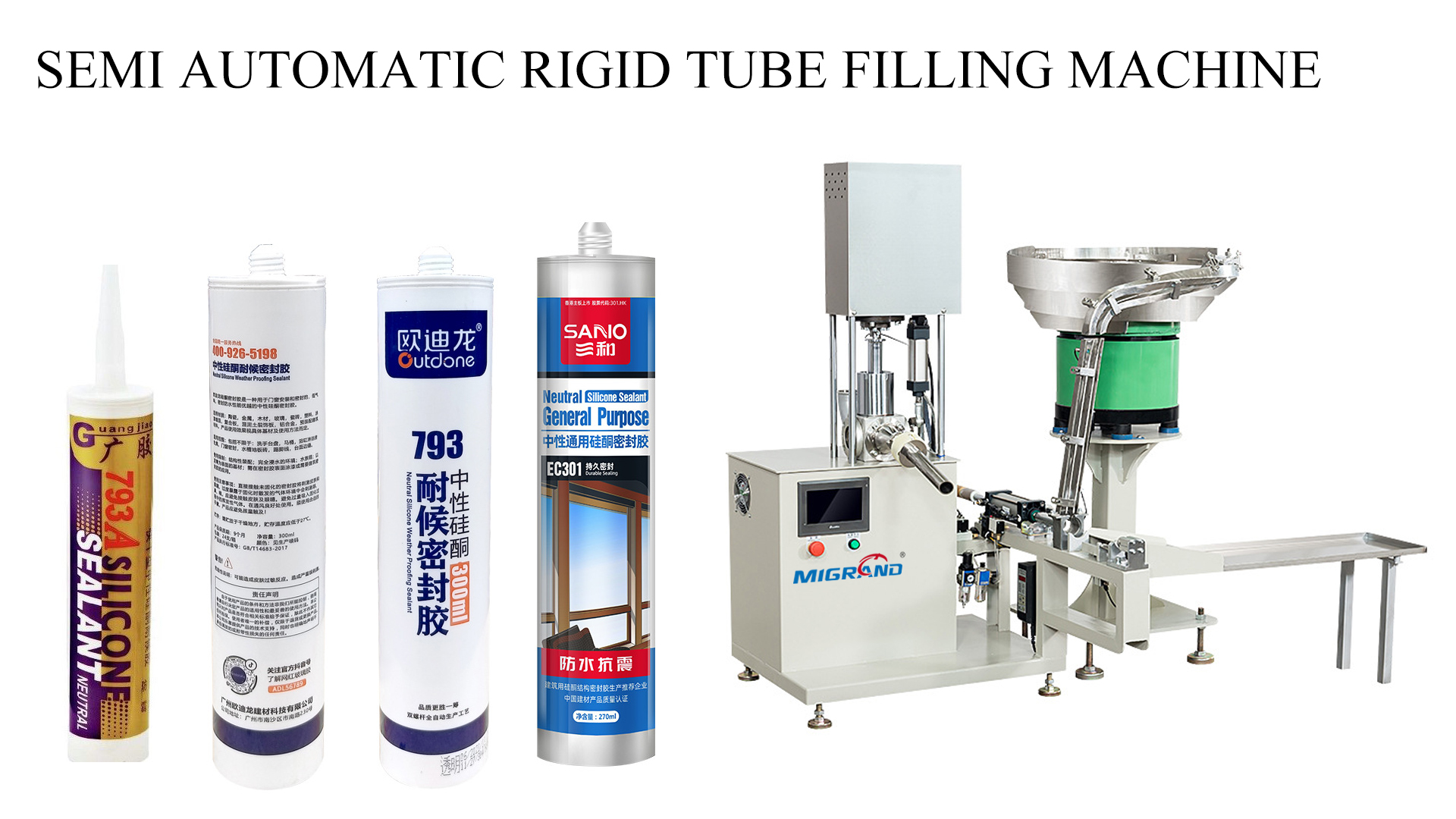

1. Suitable for filling paste-like materials such as silicone sealant, MS sealant, water-based adhesive, and grease.
2. Models for 300ML rigid tubes of adhesives (GDT - S1; GDT - S2; GDT - S3; GDT - S4; GDT - S5; GDT - S6).
3. Models for 400ML rigid tubes of lubricating grease (GDT - 1; GDT - 2).
4. Models 1 - 6: The filling speed is 20 - 35 tubes per minute. There are 1 - 6 working positions to choose from, and it can switch between filling several varieties of materials.
5. Models with filling + capping + coding functions are available for selection.
6. Single - component models / Two - component models.
7. Horizontal models / Vertical models (for runny materials).
8. Measurement accuracy: ±0.5%. 9. One machine can complete t

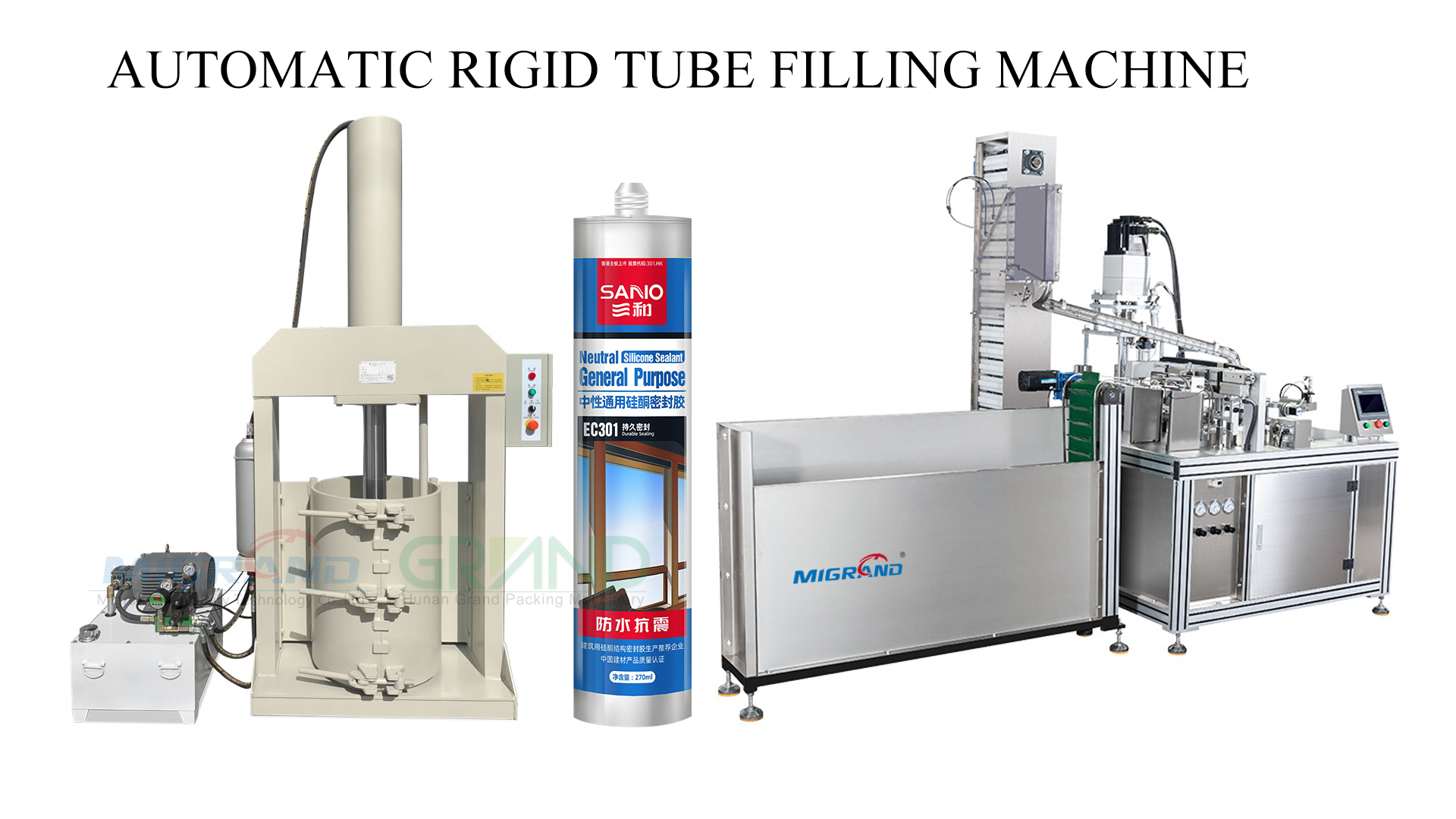

Drum Material Pressing MachineMaterials with high viscosity such as glass glue, electronic glue and adhesive usually need to be filled with the help of hydraulic discharging machine.This kind of material has poor fluidity, so it needs to be pressurized by hydraulic system and pressure plate structure to realize extrusion operation.
The structure is mainly composed of a frame, a lifting frame, an oil cylinder, a pressure plate, a hydraulic system, a pressure stabilizing system, a discharge flow control system, an electric cabinet and the like.
Through the pressure plate to make high-viscosity viscous material extrusion to the pump filling mechanism, such as rotary valve pump, rotor pump, etc.
For materials requiring vacuum sealing treatment such as oil-containing aluminum scraps, a vacuum sealing cover is added on the basis of the hydraulic discharging machine, and the hydraulic system can provide the function of pressure filling in a vacuum environment to ensure that the transfer of materials is completed in a sealed state.
1. Suitable for the extrusion of paste-like materials such as silicone sealant, MS sealant, PU sealant, and joint filler.
2. Suitable for connecting to various types of adhesive filling machines and grinders for feeding purposes.
3. Applicable to standard models for 20L and 200L straight-body standard barrels.
4. Customization is available for pull cylinders with specifications ranging from 5L to 1100L.
5. An independent pressure self-control system is adopted to maintain constant pressure feeding to ensure metering accuracy.
6. TPM/NOK seals, Schneider contactors, and IDEC (Izumi Electric) switches are selected, featuring stable performance and requiring little maintenance.
7. An accumulator energy-saving pressure-maintaini
1. Suitable for filling paste - like materials such as silicone sealants, MS sealants, water - based adhesives, and lubricating greases.
2. Adhesive 300ML rigid tube models (GDT-30H3- 1; GDT-30H3 - 2; GDT-30H3 - 3; GDT-60H3 - 2S).
3. Lubricating grease 400ML rigid tube models (GDT-30H4- 1; GDT-30H4 - 2; GDT-60H4 - 2S).
4. Models 1 - 3: The filling speed is 25 - 35 tubes per minute. There are 1 - 3 workstations available for selection, and it can realize the filling of several varieties of materials with easy switching.
5. Model 2S: The filling speed is 45 - 60 tubes per minute, suitable for single - variety material filling.
6. Horizontal or vertical models (for flowing materials).
7. Measurement accuracy: ±0.5%.
8. One machine can automatically complete tube feeding, cap feeding, quantitative filling, filament cutting, cap pressing, and code spraying.
9. Automatic code spraying (the code - spraying machine should be provided by the customer).
10. Equipped with comprehensive detection, alarm, and shutdown functions.
1. Suitable for filling paste-like materials such as silicone sealant, MS sealant, water-based adhesive, and grease.
2. Models for 300ML rigid tubes of adhesives (GDT - S1; GDT - S2; GDT - S3; GDT - S4; GDT - S5; GDT - S6).
3. Models for 400ML rigid tubes of lubricating grease (GDT - 1; GDT - 2).
4. Models 1 - 6: The filling speed is 20 - 35 tubes per minute. There are 1 - 6 working positions to choose from, and it can switch between filling several varieties of materials.
5. Models with filling + capping + coding functions are available for selection.
6. Single - component models / Two - component models.
7. Horizontal models / Vertical models (for runny materials).
8. Measurement accuracy: ±0.5%. 9. One machine can complete t
Drum Material Pressing MachineMaterials with high viscosity such as glass glue, electronic glue and adhesive usually need to be filled with the help of hydraulic discharging machine.This kind of material has poor fluidity, so it needs to be pressurized by hydraulic system and pressure plate structure to realize extrusion operation.
The structure is mainly composed of a frame, a lifting frame, an oil cylinder, a pressure plate, a hydraulic system, a pressure stabilizing system, a discharge flow control system, an electric cabinet and the like.
Through the pressure plate to make high-viscosity viscous material extrusion to the pump filling mechanism, such as rotary valve pump, rotor pump, etc.
For materials requiring vacuum sealing treatment such as oil-containing aluminum scraps, a vacuum sealing cover is added on the basis of the hydraulic discharging machine, and the hydraulic system can provide the function of pressure filling in a vacuum environment to ensure that the transfer of materials is completed in a sealed state.
1. Suitable for the extrusion of paste-like materials such as silicone sealant, MS sealant, PU sealant, and joint filler.
2. Suitable for connecting to various types of adhesive filling machines and grinders for feeding purposes.
3. Applicable to standard models for 20L and 200L straight-body standard barrels.
4. Customization is available for pull cylinders with specifications ranging from 5L to 1100L.
5. An independent pressure self-control system is adopted to maintain constant pressure feeding to ensure metering accuracy.
6. TPM/NOK seals, Schneider contactors, and IDEC (Izumi Electric) switches are selected, featuring stable performance and requiring little maintenance.
7. An accumulator energy-saving pressure-maintaini
