Working principle

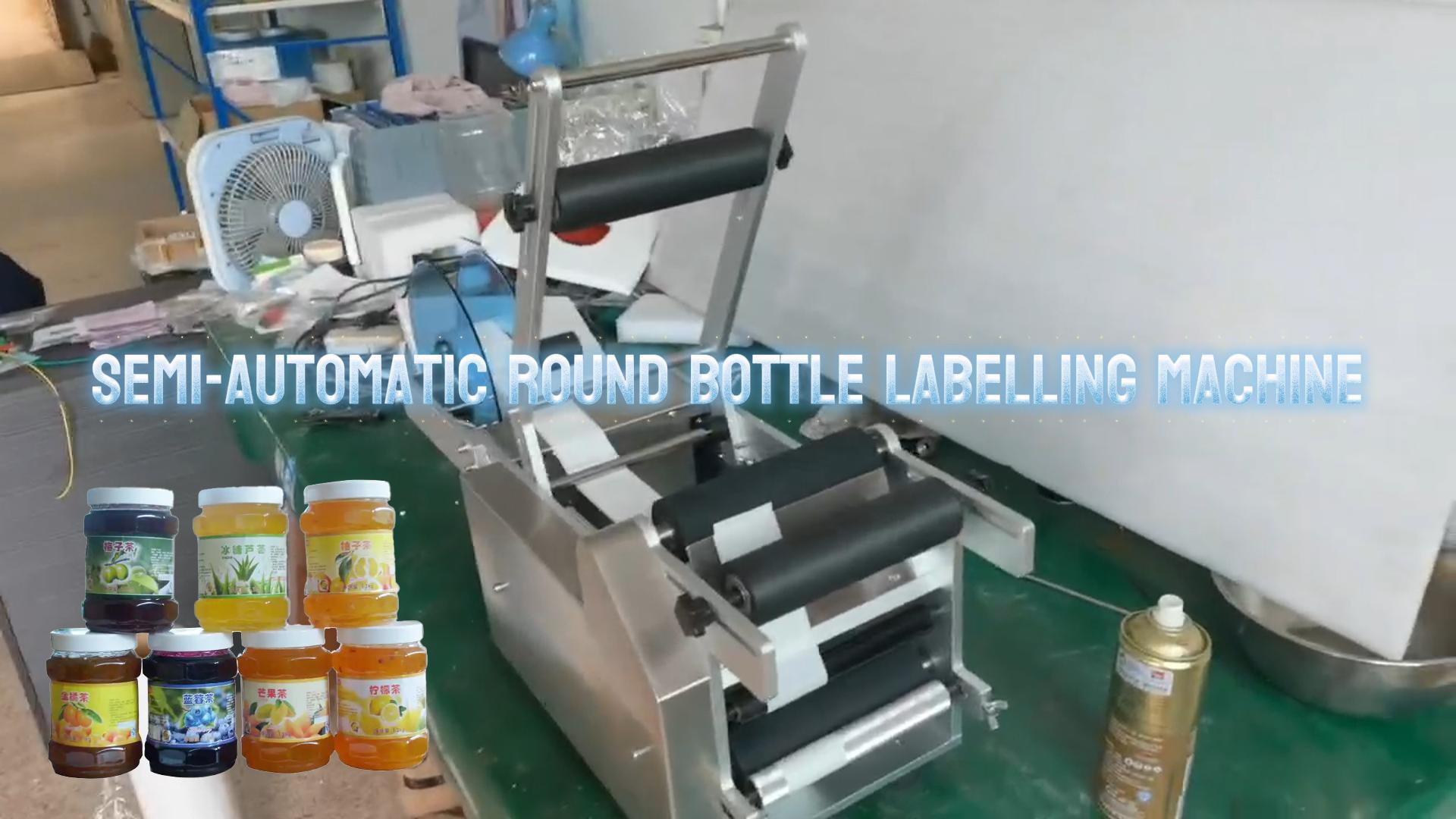

Imported intelligent high-accuracy magic eye and high reliable computer chip program controller (PLC) control the label and the case, label, using rubber roller pinned bottle the non-drying label followed the bottle in the bottle and put on rotating.
Technical parameters
1，efficiency：≤40pcs/min
2，precision：±1mm
3，Applicable bottles of diameter：Φ10-150mm
4，label roll：external diameter≤φ200mm inner diameter：φ75mm
5，Label size：width 10-130mm length 10-150mm
6，Power supply：220 V,50HZ 120W，110V60HZ 150W
7，Machine size：650（L）×450（W）×450（H）mm
8，Machine weight：20kg
Operation sequence

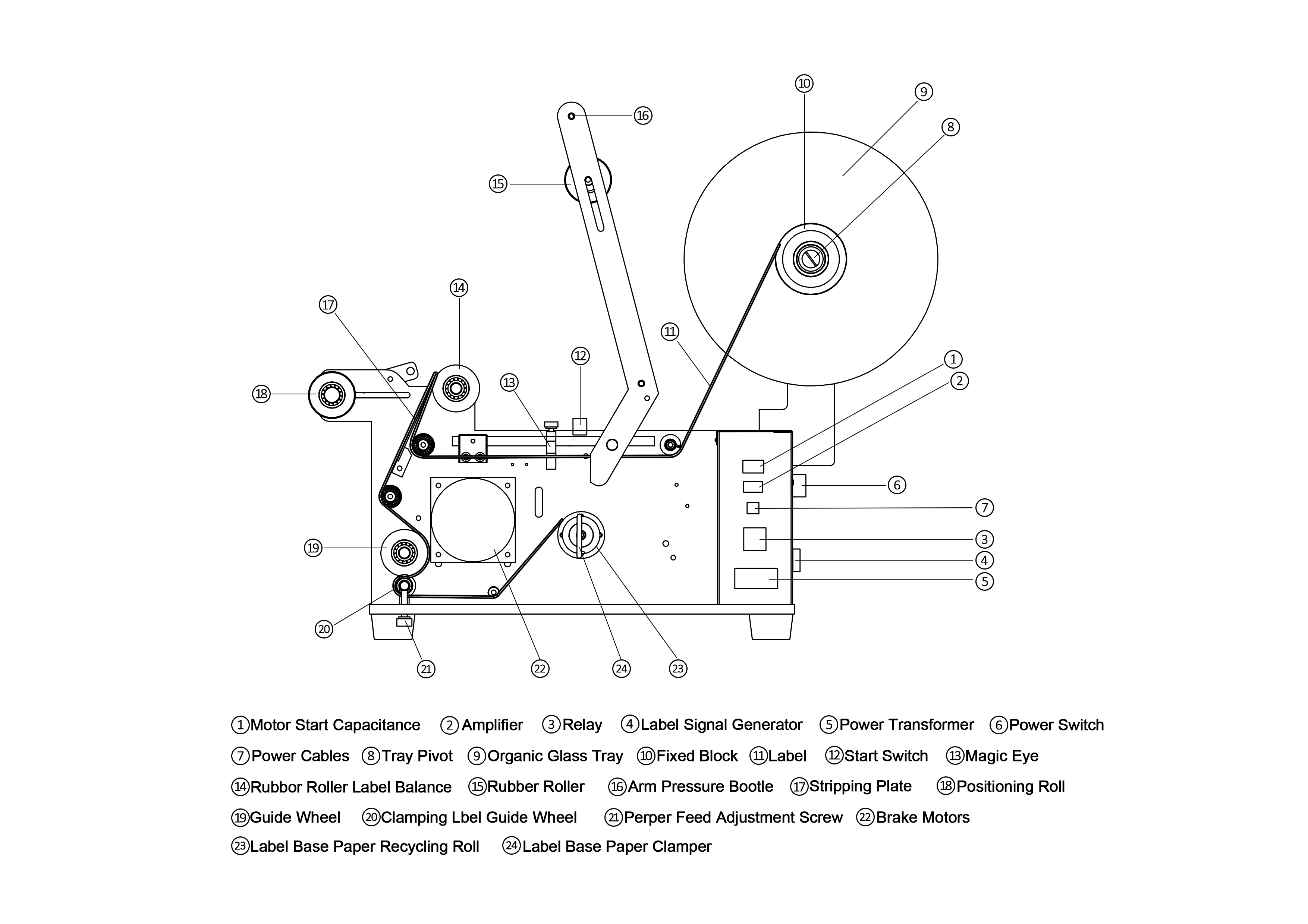

1，First installation 2 slices of organic glass tray, respectively in two round installation fixed block, and then you will take slot first set of fixed block nursery dish core shaft, the green o-rings pull to fixed block of the trough, again fixed block screwed.
2，Label installation: the installation rolls label, is direction in clockwise tag along the label, and put the label on the tray to carry the external fixation and lock screw.
3，According to the label will wear the good direction, finally the "clamping label guide wheel", otherwise the machine will not work. In the lock "clamping label guide wheel", must pay attention to the balance of the rubber roller tag around balance degree, such as or so didn't balance, can appear labeling up and down after the label phenomenon. The paragraph tags and bottom mark after must wear on the same level, and put all the film cylinder on the positioning of the circle to transfer to the appropriate location, in order to ensure that the guide is the label.
Working principle
Imported intelligent high-accuracy magic eye and high reliable computer chip program controller (PLC) control the label and the case, label, using rubber roller pinned bottle the non-drying label followed the bottle in the bottle and put on rotating.
Technical parameters
1，efficiency：≤40pcs/min
2，precision：±1mm
3，Applicable bottles of diameter：Φ10-150mm
4，label roll：external diameter≤φ200mm inner diameter：φ75mm
5，Label size：width 10-130mm length 10-150mm
6，Power supply：220 V,50HZ 120W，110V60HZ 150W
7，Machine size：650（L）×450（W）×450（H）mm
8，Machine weight：20kg
Operation sequence
1，First installation 2 slices of organic glass tray, respectively in two round installation fixed block, and then you will take slot first set of fixed block nursery dish core shaft, the green o-rings pull to fixed block of the trough, again fixed block screwed.
2，Label installation: the installation rolls label, is direction in clockwise tag along the label, and put the label on the tray to carry the external fixation and lock screw.
3，According to the label will wear the good direction, finally the "clamping label guide wheel", otherwise the machine will not work. In the lock "clamping label guide wheel", must pay attention to the balance of the rubber roller tag around balance degree, such as or so didn't balance, can appear labeling up and down after the label phenomenon. The paragraph tags and bottom mark after must wear on the same level, and put all the film cylinder on the positioning of the circle to transfer to the appropriate location, in order to ensure that the guide is the label.
