0.5-10ml Monodose Aluminium Vial Forming Filling Sealing Machine

Mobile/Wechat/Whatsapp: +86-13706885851
E-mail: sales@grand-packing.com

Model:
GDS-240P5
Brand:
MIGRAND
Code:
8422303090

Availability:

Inquire Add to Basket

Product Description

Automatic Aluminium vial forming and Liquid Filling Sealing Machine

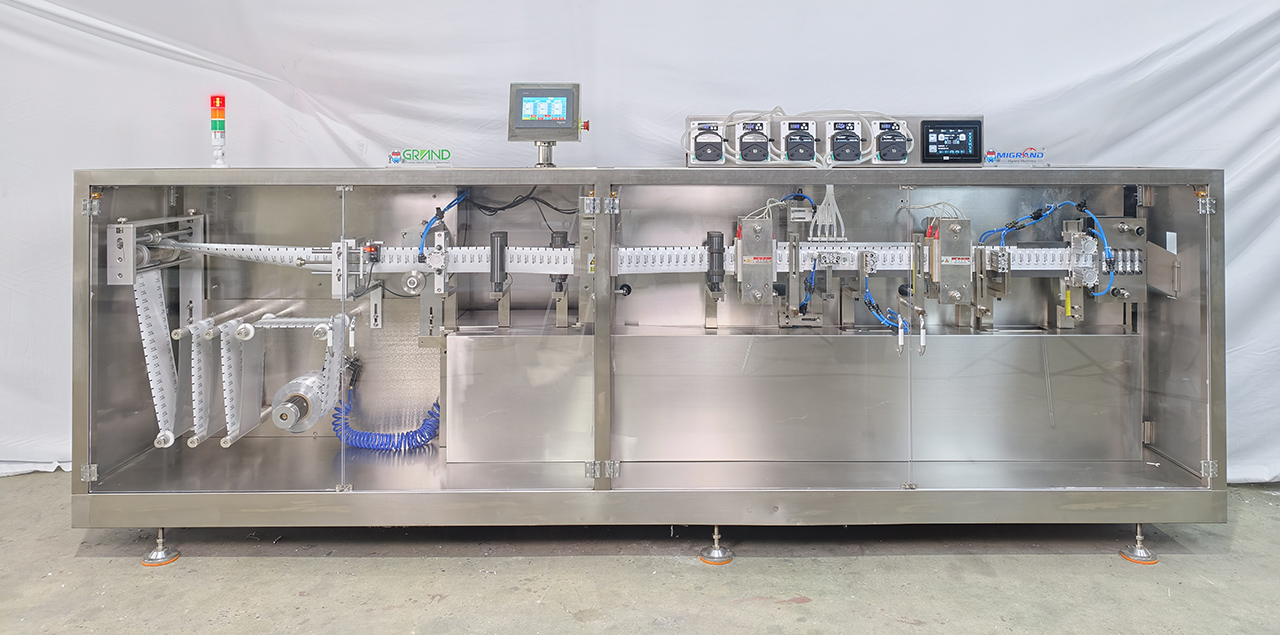

GDS240P5 alu alu container forming and liquid filling sealing machine

PERFORMANCE CHARACTERISTICS

1.High capacity, high speed, high precision, and advanced motion controller. Stepless frequency conversion speed regulation control. Servo motor controls film traction device.

2.Human-machine interface, easy to operate.

3.Automatic unwinding, roll film cutting. It has positive and negative pattern alignment function with photoelectric device. The product is exquisite and beautiful, which meets high standard of packing requirements.

4.It adopts electronic peristaltic pump device and mechanical piston pump control, which hasconvenient adjustment.

5.High filling accuracy with suction back function without any dripping.

6.The parts contacting with the medicine adopt high quality stainless steel 316L, and the outercover of the machine is made of SUS304 stainless steel, which meets with GMP standard.

7.As the bottom of the bottle is flat, so it can stand.

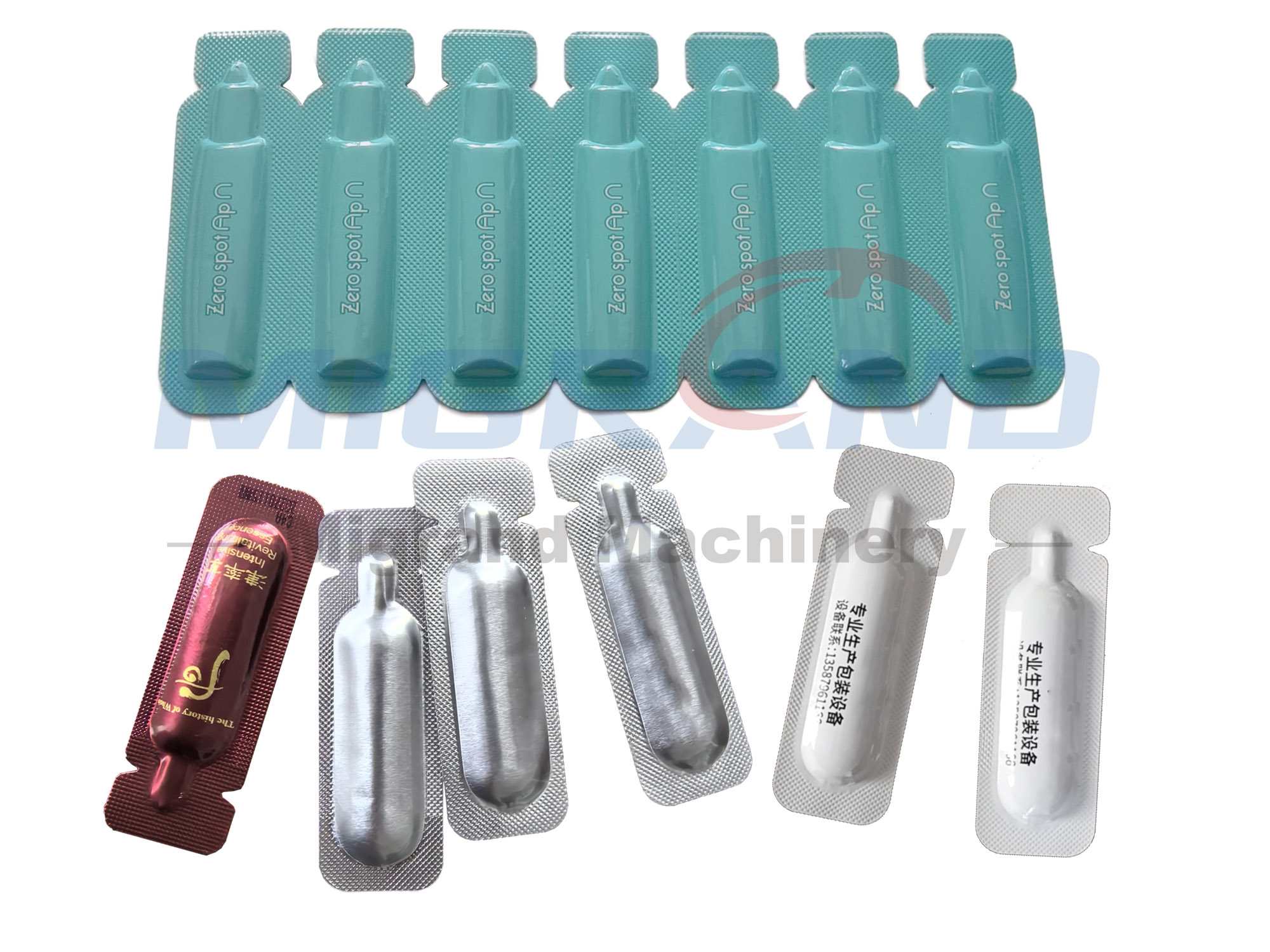

alu alu vial sample

APPLISCATION

The machine is suitable for unit metering of medicine, beverage, dairy product, health product,food, cosmetics, perfume, pesticide, fruit pulp and so on.

Main technical parameter

Max. forming depth	6mm
Punch frequency	0-25times
Packing material	AFP/BIister
Filling volume	0.5-10ml
Toal power supply power	5KW
Voltage	380V / 220V 50Hz
Machine weight	1200Kg
Overall dimension (LWH)	3500×850×1400(mm)
