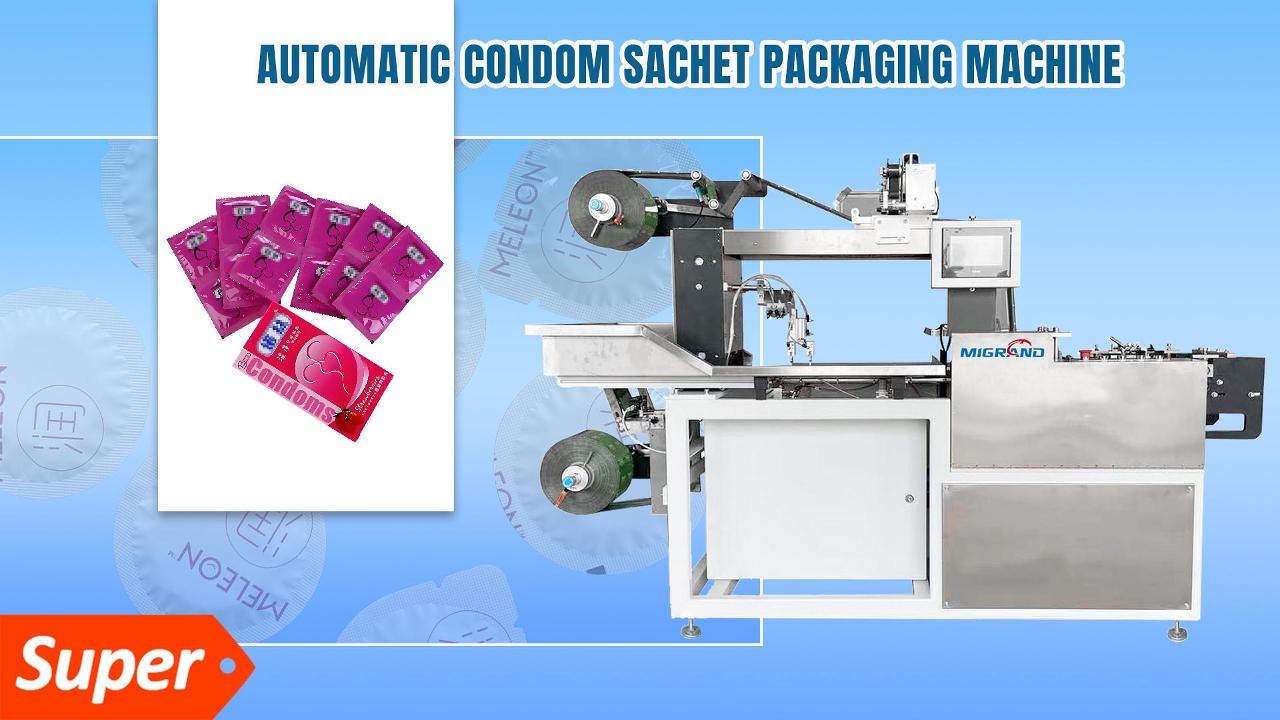

MGD-260 multifunctional automatic aluminum foil four-row condom packing machine is a new product with high degree of automation designed by our company for condom factories, health care products factories and hospital preparation rooms.It is especially suitable for the production of various products.
The machine adopts microcomputer programming control, variable frequency speed regulation and touch panel operation.Feeding, heat sealing, oil injection, package cutting, batch number printing and other processes are all continuously and automatically completed, easy to operate, fully functional, is an ideal condom packaging equipment.
Product Parameters
| Cutting frequency | 10-50times/min |
| Production capacity | 10800-12000 sachets / h |
| Sachet Shape | Round, square,special shape |
| Stroke | 55-63mm (depends on client requirements) |
| Standard size | 60×60mm (depends on client requirements) |
| Air pressure | 0.5-0.6MPa |
| Air flow | ≥0.25m3/min |
| Total power supply | 220V/50Hz, 3.5KW |
| Main motor power | 0.75KW |
| PTP aluminum foil size | 0.02~0.035×130mm |
| Machine dimension | 2950×800×1450mm (L×W×H) |
| Machine weight | 800kg |
Please provide the following information for initial evaluation:
1. What's the sachet/condom shape and size?
2. Picture or video to show us what product need to be filled into sachet ?
Liquid / Condom,etc.
3. Do you need single machine or need to be connected with conveyor of production line?
4. If need to be connected with conveyor of production line, what's the coming speed of the product? How is the product delivered on the conveyor? Provide us the picture or video is rather more helpful.
5. Any special products you want to pack with pouch, please go ahead to provide us the details, we can provide solution for you.
Detailed Photos
MGD-260 multifunctional automatic aluminum foil four-row condom packing machine is a new product with high degree of automation designed by our company for condom factories, health care products factories and hospital preparation rooms.It is especially suitable for the production of various products.
The machine adopts microcomputer programming control, variable frequency speed regulation and touch panel operation.Feeding, heat sealing, oil injection, package cutting, batch number printing and other processes are all continuously and automatically completed, easy to operate, fully functional, is an ideal condom packaging equipment.
Product Parameters
| Cutting frequency | 10-50times/min |
| Production capacity | 10800-12000 sachets / h |
| Sachet Shape | Round, square,special shape |
| Stroke | 55-63mm (depends on client requirements) |
| Standard size | 60×60mm (depends on client requirements) |
| Air pressure | 0.5-0.6MPa |
| Air flow | ≥0.25m3/min |
| Total power supply | 220V/50Hz, 3.5KW |
| Main motor power | 0.75KW |
| PTP aluminum foil size | 0.02~0.035×130mm |
| Machine dimension | 2950×800×1450mm (L×W×H) |
| Machine weight | 800kg |
Please provide the following information for initial evaluation:
1. What's the sachet/condom shape and size?
2. Picture or video to show us what product need to be filled into sachet ?
Liquid / Condom,etc.
3. Do you need single machine or need to be connected with conveyor of production line?
4. If need to be connected with conveyor of production line, what's the coming speed of the product? How is the product delivered on the conveyor? Provide us the picture or video is rather more helpful.
5. Any special products you want to pack with pouch, please go ahead to provide us the details, we can provide solution for you.
Detailed Photos
