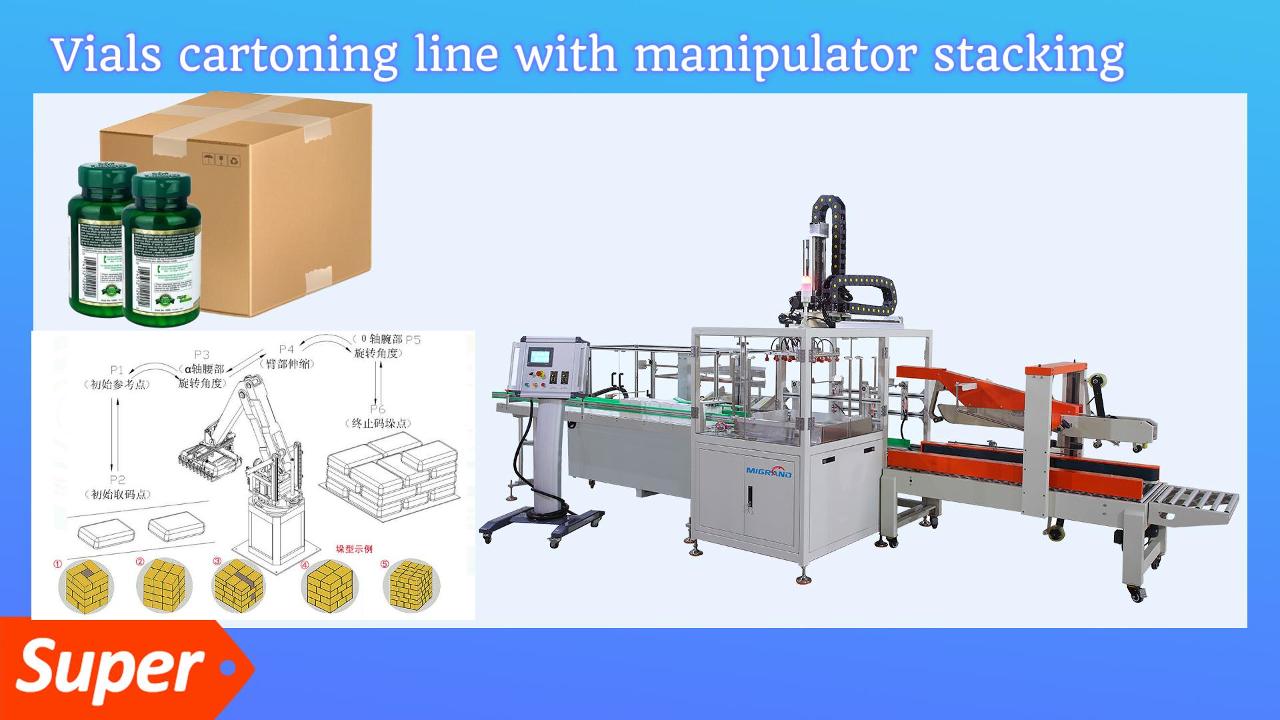

This fully automatic carton opening & incasing and sealing machine is a highly integrated, fully automatic equipment that integrates the functions of a carton unpacking machine, a case packer, and a carton sealing machine,bottle sorting mechanism.

It can automatically complete carton unpacking, bottles incasing, and tape sealing. bottle sorting and Matrix sucker grab and other actions improve the efficiency of packing work and reduce the labor intensity of workers. And different specifications of working modes can be selected according to customer needs, realizing the diversified packaging needs of users and better reflecting the fully automatic and multi-functional characteristics of the equipment. The equipment is also equipped with robot stacker and automatic winding machine to realize fully automatic unmanned operation. The structure layout is compact and reasonable, and the work is stable and efficient.

6. Packing is smooth and does not damage the appearance of the carton. The appearance of the finished carton is intact, neat and qualified.

Technical parameter

Vacuum source: It is equipped with independent vacuum pump to ensure the stability of the equipment without being affected by the pressure of the external air source.

High-end slide rail and tank chain are used to ensure the stability and durability of the two-axis robot.

Schneider high-end PLC, servo motor and frequency converter are used for electrical appliances.

Automatic box opening mechanism

1.1. Application

This machine can open boxes, fold bottom flaps of the boxes, seal the box bottom with tape and out-feed the opened box. It is economical and practical.

Box opening

1.2. Technical requirements

1) The whole box opening process should be stable and protected by reliable positioning and protection measures. No damage should be caused to boxes. The box opening speed can reach 1-10 boxes/min.

2) The opened box should be flat and neat. The box opening pass rate is no lower than 99.9%.

3) The touch screen of this machine can be used to debug the machine and control the production. It can also display the output counting, running speed and alarms. Besides, it has protection functions of automatic shutdown in case of alarm, error or emergency stop.

4) Hand wheel can be used for convenient and accurate box specification adjustment.

Automatic Box Sealing Machine

3.1. Application

This machine can automatically fold the top flaps of the boxes and seal them with adhesive tape.

3.2. Technical requirements

1) The whole sealing process should be finished stably with enough positioning and protection measures and cause no damage to the boxes with the sealing speed no lower than 15 boxes/min.

2) The sealed boxes should be flat and tidy. The box sealing pass rate can reach 100%.

3) The touch screen of this machine enables the machine to be debugged and controlled standalone and to have the functions of displaying output counting, running speed and alarms. Besides, the machine can have the optional functions of shutdown in case of alarming, error and emergency stop.

4) The machine can be adjusted conveniently through the hand wheel for its adaptation to box specification change.

Stacking Robot

4.1. Technical Performance Features

(1) Equipped with ultra - large load - bearing capacity, with an effective load of up to 30Kg.
(2) Applicable to multiple scenarios. Can be matched with various tooling fixtures according to actual scenarios, such as suction cups, grippers, drawer - type clamps, etc.
(3) Fast cycle speed. According to the actual application site, it can achieve multi - grabbing/multi - suction.
(4) KW1180 - 3200 has extremely high stability. Matched with a high - speed motor, it realizes stable speed performance.

4.2.Main Electrical List
