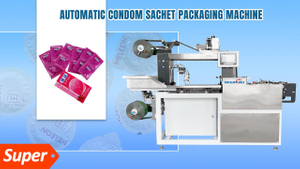

Condom packing machine is a kind of mechatronics automatic packaging machine, which can automatically complete the processes of condom feeding with oil, film feeding, condom clamping, heat sealing and cutting. The main drive adopts motor stepless speed regulation, and cam controls the action of each actuator. The machine has high control precision, compact structure, stable performance, reliable performance and easy operation.
The machine specification is as below:
Production capacity | Rectangular type: 40~80 condoms/min Square type: 40~60 condoms/min |

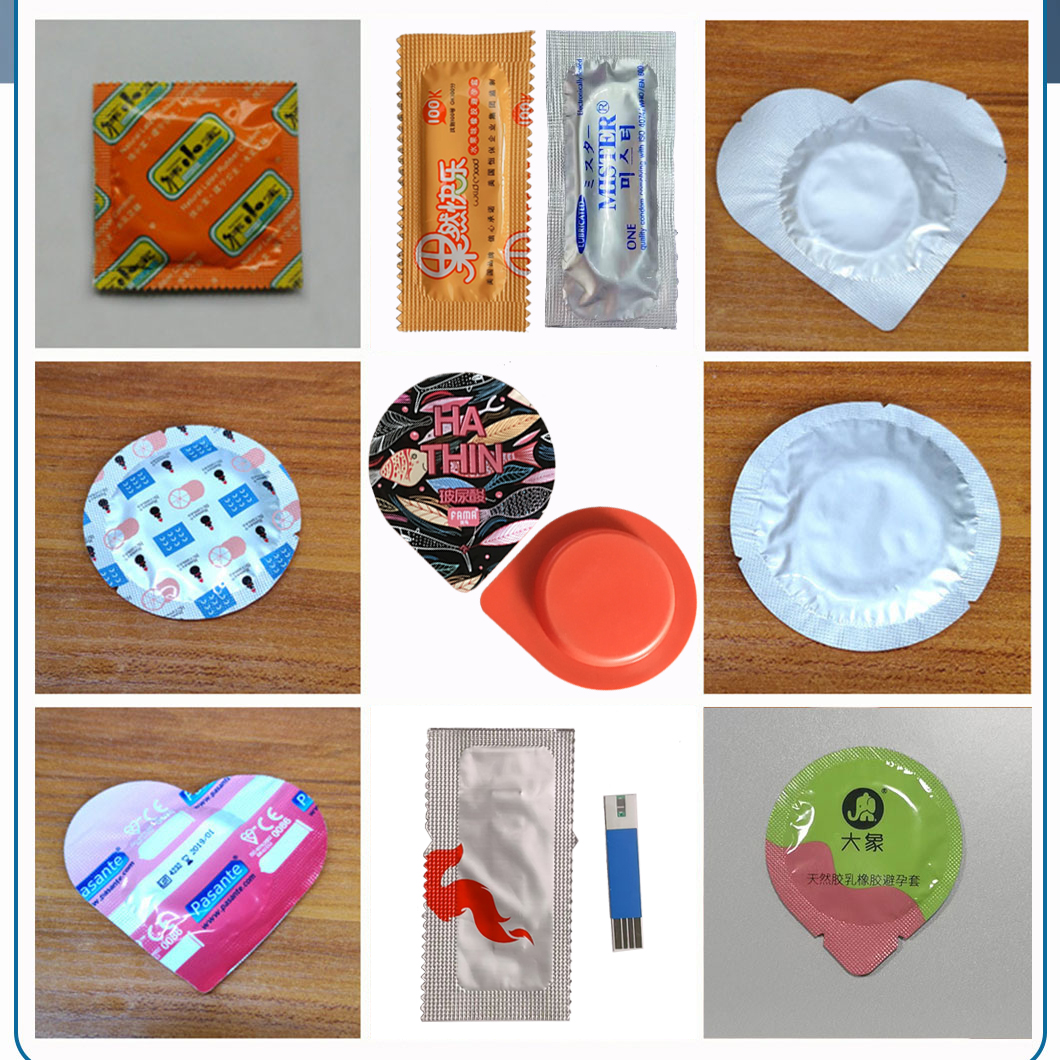

Condom package size | Rectangular type: 30*70mm, adjustable Square type: 56*56mm, adjustable |
Condom sealing width | 5mm |
Machine dimension | 1800*850*1100mm |
Machine packaged dimension | 2000*1000*1300mm |
Machine weight | 460Kg |
Power supply | 3-phase, AC 380V ±10% |
Motor | 3-phase, AC 380V, 0.75Kw |
Total power of heater | 500W |
Production speed | 40~75 condoms/min |
Empty package rate | ≤ 4‰ |
Qualified rate | > 99% |
Noise | ≤ 75dB (for a weighting) |
Heat pressing mold temperature | Room temperature ~ 220ºC, adjustable, control accuracy ±1ºC |
Power supply | 3-phase, AC 380V ±10% |
Main motor power | 0.75kw, speed: 20~105rpm |

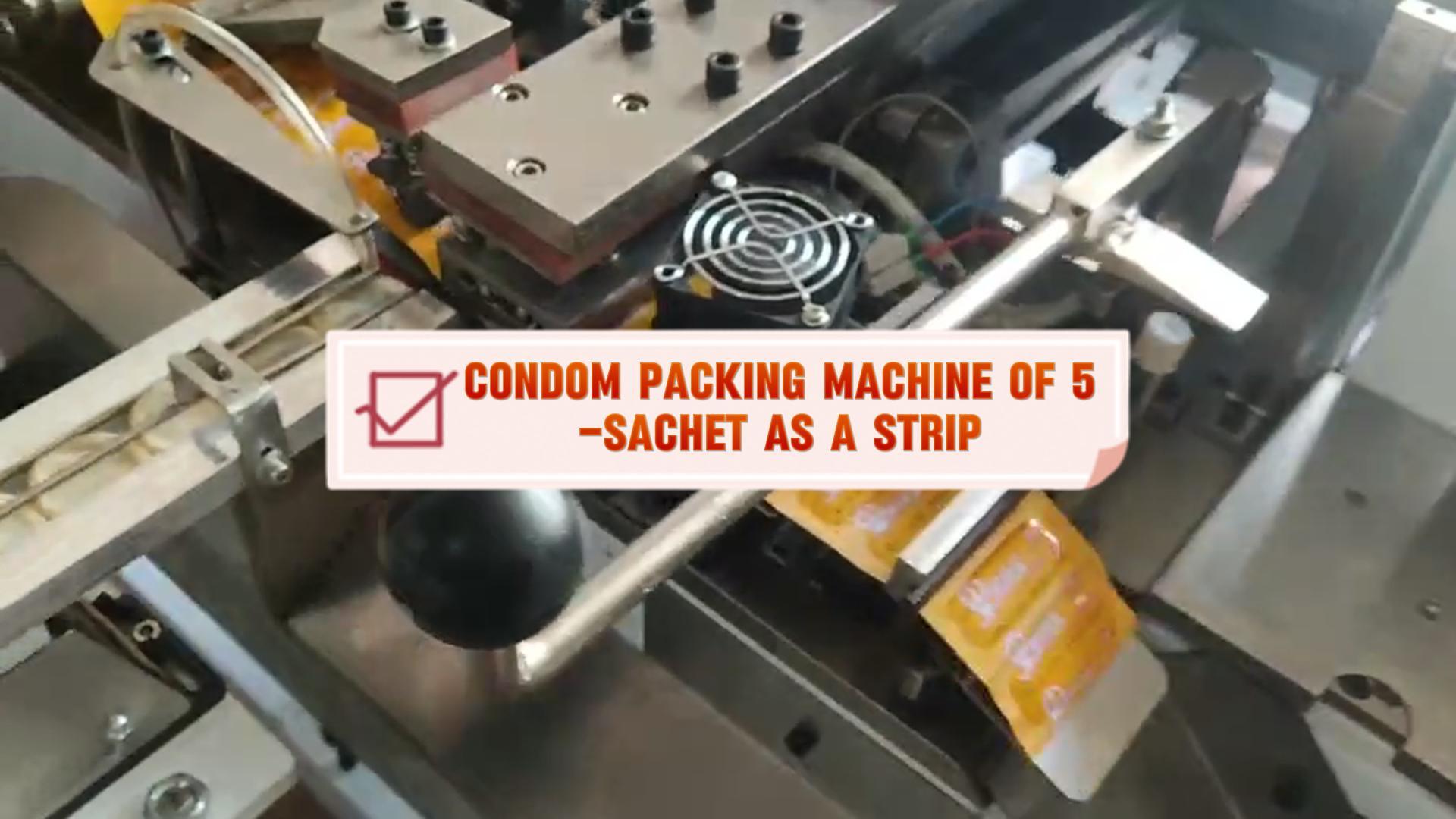

The machine feeds the aluminum-plastic composite film automatically to the position of condoms clamping station, the manipulator takes the condom and places it between the upper and lower film, and then the condom is conveyed to the heat sealing station with packing film together for heat sealing and cutting, and then the finished product is discharged.
