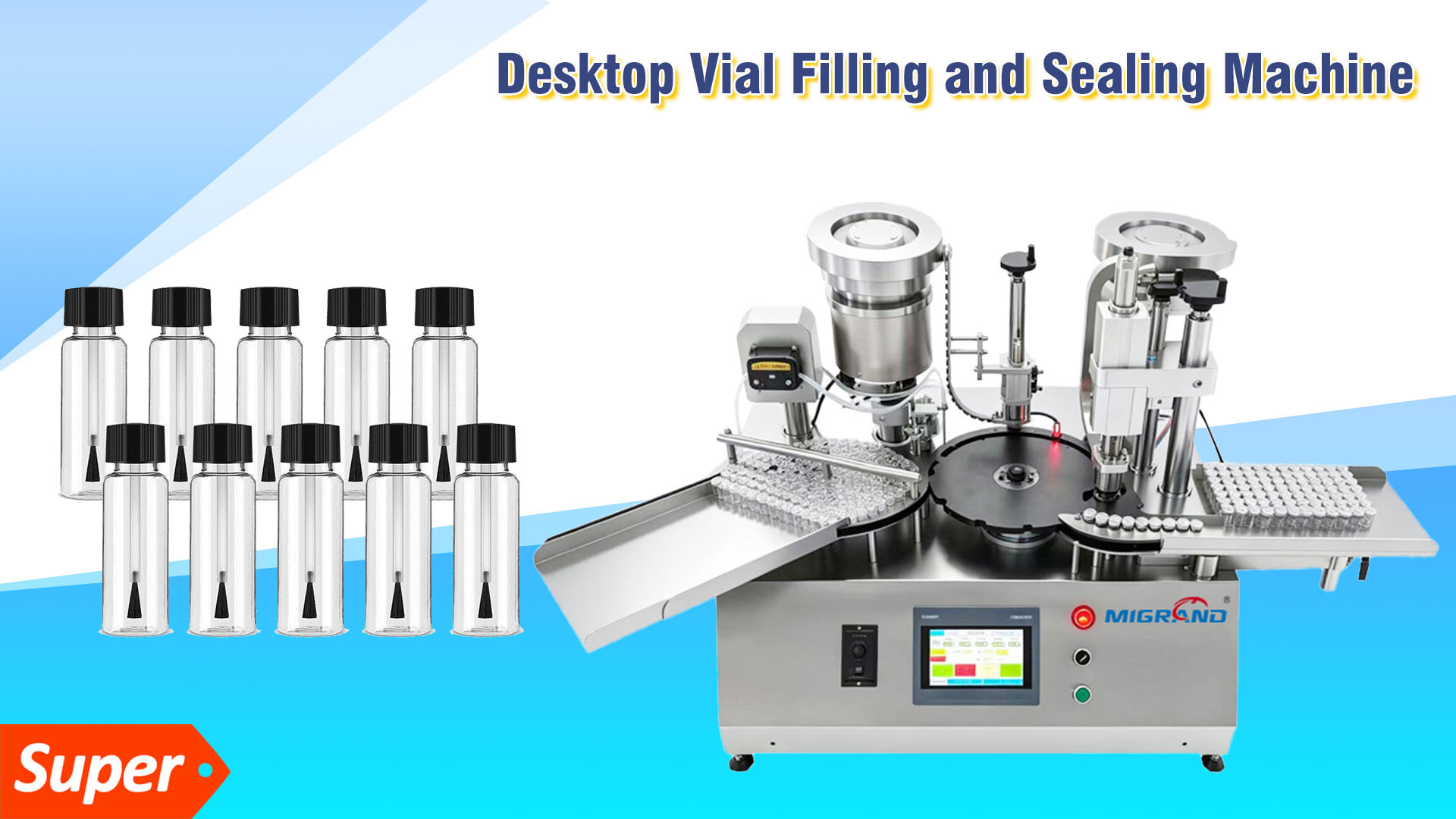

Benchtop Glass Vial Filling Capping Machine

I. Machine Overview and Features

1.1 Overview

This equipment features an integrated electromechanical design, ensuring ease of operation and reliable performance. Its operating principle involves the following: upon startup, the rotary table begins to turn, and a vibratory bowl automatically feeds bottles onto the rotary table for the filling process. Once filled, the bottles are rotated counter-clockwise to the capping station, where caps are automatically placed and pressed on. Finally, a robotic arm removes the finished bottles, and the cycle repeats to continuously perform the assigned tasks.

The equipment utilizes a reliable control system composed of a PLC (Programmable Logic Controller) and a color touchscreen, ensuring stable and dependable process control.

Characterized by a rational design, compact structure, accurate filling, high-speed capping, high reliability, simple operation, and easy maintenance, this machine is an ideal solution for automated processes in industries such as food and beverage, personal care, and pharmaceuticals.

1.2 Features

Advanced Human-Machine Interface (HMI): Allows for the storage and adjustment of operating parameters and features fault display capabilities, ensuring ease of use.

Material Contact Parts: Constructed from 316L/304 stainless steel or food-grade silicone tubing (for peristaltic pumps); these materials offer excellent acid, alkali, and corrosion resistance, fully complying with food hygiene standards.

Versatile Configuration: Options include various pump heads, rotary tables, and capping heads that can be quickly and easily swapped to accommodate bottles of different capacities and specifications.

Optimized Structural Layout: Designed for easy disassembly, assembly, and cleaning, simplifying routine maintenance and servicing.

Aesthetic Design: The machine features an exterior constructed from 304 stainless steel and aluminum, offering a sleek and professional appearance.

II. Machine Specifications and Parameters

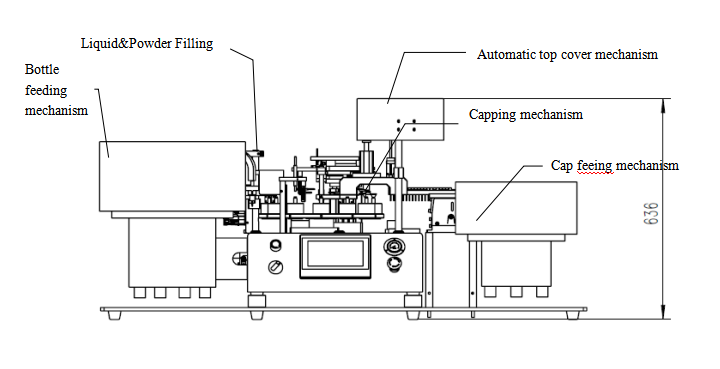

2.1 Overall Dimensions

2.2 Specifications

Power: 350W

AC Power: 220V, 50/60Hz (Single-phase)

Operating Air Pressure: 0.4–0.6 MPa

Production Speed: 18–25 bottles/minute

Filling Range: Determined by pump head specifications

Filling Accuracy: ±2%

Bottle Height: Adjustable according to customer requirements

Bottle Diameter: Adjustable according to customer requirements
