GDSZ-B
MIGRAND
| Availability: | |
|---|---|
|
| |

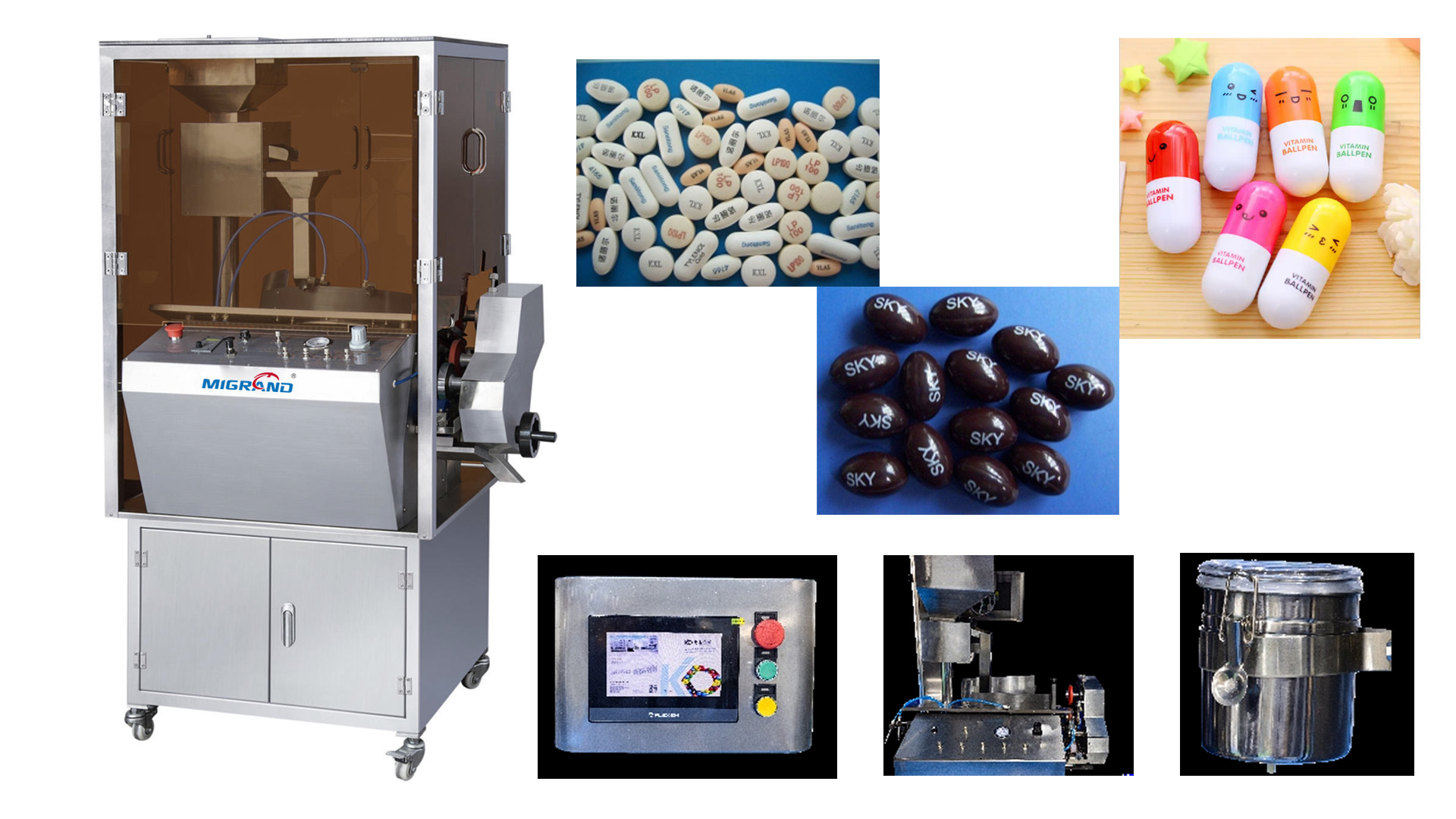

1.1. This machine adopts a new type of rotary table transfer brush device, a fully enclosed operating platform, which meets the operating requirements of "GMP". The body is equipped with brake wheels for convenient displacement, simple operation, convenient variety replacement, low noise, and other advantages.
1.2. This machine uses edible ink and anhydrous ethanol as the diluent, which is non-toxic and has no side effects. High speed printing, clear, fine, and fast drying handwriting. Equipment that can be used for double-sided monochrome printing has been widely used in industries such as medicine and food.
1.3. This machine is suitable for products of any size or shape, and can be used for axial printing on hollow capsules or capsules filled with powder. It can also be used for printing circular, oblong, triangular, hexagonal, sugar coated, unpolished, polished coated films, and for printing patterns, Chinese, English, and other products on standardized candies or various soft capsules.
1、Fully sealed design, fully in line with GMP specifications.
2、Adopt full-automatic vibration feeder (with powder layer recovery function) to improve filling rate and yield.
3、With alcohol pot, ink automatic dilution function.
4、Ink scraper and printing device are pneumatic layout to save operating time and improve printing efficiency.
| Rotate speed： | 16～18rpm |
| Machine size： | 1000*760*1540mm |
| Machine weight： | 230KG |
| Voltage | 0.25kw 220V 50Hz |
| Output | ||
| tablet： | Φ10～Φ12㎜ | 85000pcss/H |
| capsule ： | 0＃～4＃ | 25000-45000pcs/H |
| softgel： | 5MM≤ | 85000pcs/H |
| 9MM≤ | 60000pcs/H | |
| 12MM≤ | 50000pcs/H | |
| 20MM≤ | 30000pcs/H | |
1.1. This machine adopts a new type of rotary table transfer brush device, a fully enclosed operating platform, which meets the operating requirements of "GMP". The body is equipped with brake wheels for convenient displacement, simple operation, convenient variety replacement, low noise, and other advantages.
1.2. This machine uses edible ink and anhydrous ethanol as the diluent, which is non-toxic and has no side effects. High speed printing, clear, fine, and fast drying handwriting. Equipment that can be used for double-sided monochrome printing has been widely used in industries such as medicine and food.
1.3. This machine is suitable for products of any size or shape, and can be used for axial printing on hollow capsules or capsules filled with powder. It can also be used for printing circular, oblong, triangular, hexagonal, sugar coated, unpolished, polished coated films, and for printing patterns, Chinese, English, and other products on standardized candies or various soft capsules.
1、Fully sealed design, fully in line with GMP specifications.
2、Adopt full-automatic vibration feeder (with powder layer recovery function) to improve filling rate and yield.
3、With alcohol pot, ink automatic dilution function.
4、Ink scraper and printing device are pneumatic layout to save operating time and improve printing efficiency.
| Rotate speed： | 16～18rpm |
| Machine size： | 1000*760*1540mm |
| Machine weight： | 230KG |
| Voltage | 0.25kw 220V 50Hz |
| Output | ||
| tablet： | Φ10～Φ12㎜ | 85000pcss/H |
| capsule ： | 0＃～4＃ | 25000-45000pcs/H |
| softgel： | 5MM≤ | 85000pcs/H |
| 9MM≤ | 60000pcs/H | |
| 12MM≤ | 50000pcs/H | |
| 20MM≤ | 30000pcs/H | |
