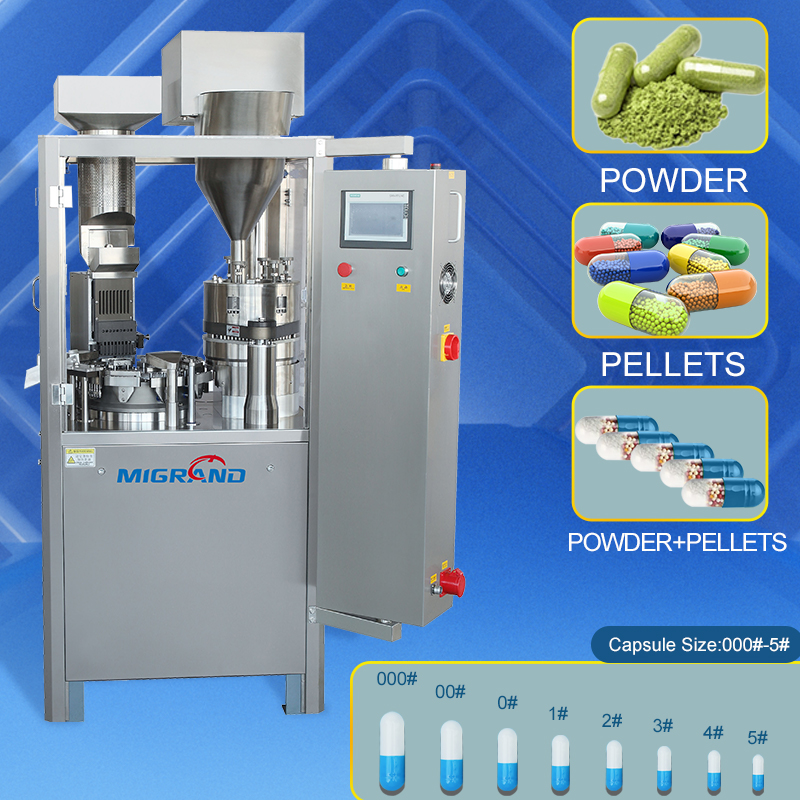

NJP-1200C full-automatic capsule filling machine is a new type of capsule filling machine made in China and absorbed advanced technology from abroad. It has been improved and innovated many times to make the machine beautiful, easy to operate and superior in performance. It has passed the CE standard certification of the European Union and is welcomed and purchased by domestic and foreign customers.

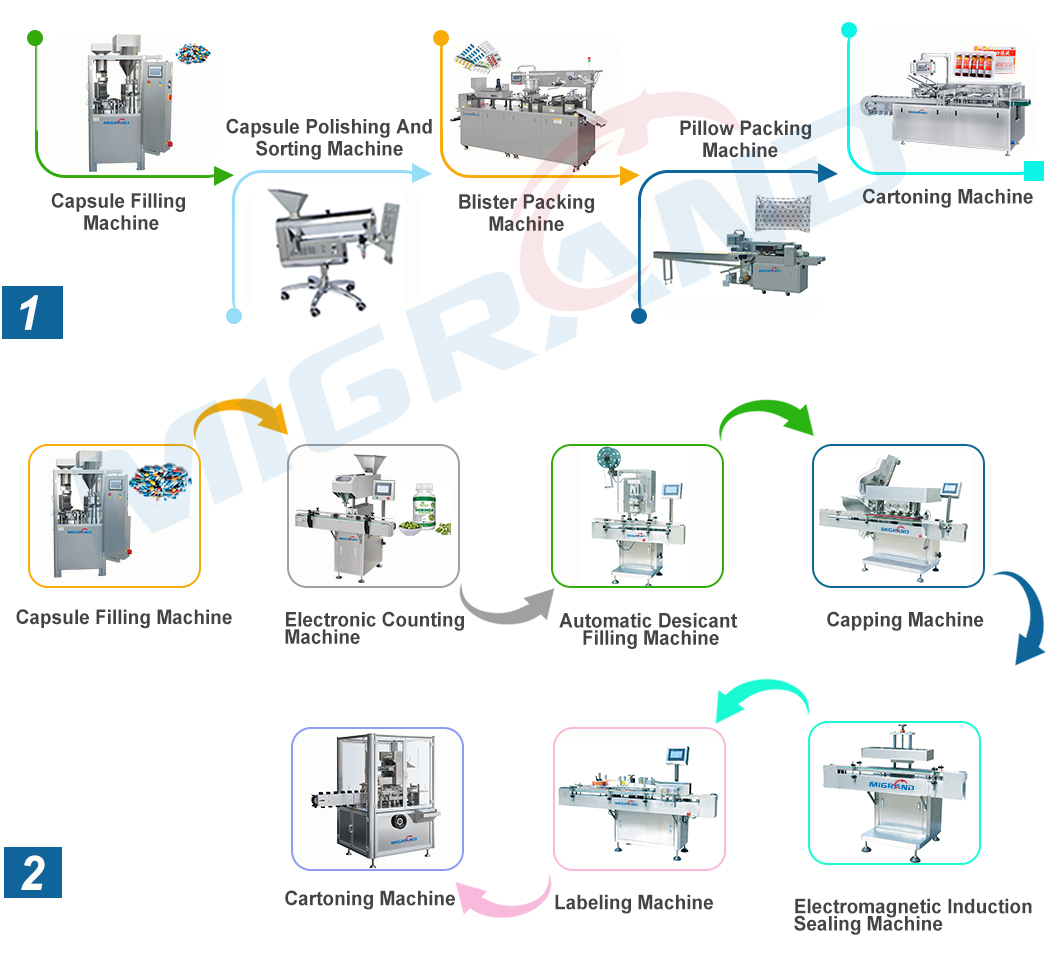

Capsule packing process
Output | 72000pcs/小时 |
Machine weight | 1000Kg |
Machine Dimensions | 870(+339)mm*940(+339)mm*2000mm |
Power Supply | 380/220V 50Hz |
Motor power | 5.3KW |
No.of segment bores | 9孔 |
Vacuum | 48m3/h -0.03~-0.05Mpa |
Dust | 20Kpa 210m3/h |
Noise | <80DB（A） |
Making rate | empty cap 99% capsule 98% |
Suitable for Capsule | 000、00、0，1，2，3，4、5# |
Filling error | ±2.5%-±3.5% |
1、The combination of RU110 and RU80 high precision indexing box was adopted to improve stability and service life.
2、Adopt the second generation totally enclosed turntable design. The upper die adopts two shafts to move up and down circumferentially, and imported silica gel seals to reduce the powder feeding into and out of the rotary table; the lower die adopts two shafts to move in and out circumferentially, matched with imported rubber seals to reduce the situation of powder feeding due to the back and forth expansion of the moving shaft, and it is stable and has high precision; the double shafts are made of a press cover, easy to disassemble and assemble, easy to clean, and the sealing ring is not changed. It is necessary to turn on the turntable to avoid cumbersome defects due to the dismantling of the turntable.
...
5、Add the extra function of Capsule control switch.(Control the capsule outside of the machine: it’s more safely and quickly).
...
10、...
More details ,pls contact us!
