Introduction of NJP-400 full automatic capsule filling machine
NJP-400 capsule filling machine automatic, as a newly designed product, can replace the semi-automatic capsule filling machine. The machine has attracted many clients, since it can be applicable in many areas, such as hospitals, pharmaceutical research institutes, laboratories, colleges and universities, small pharmaceutical factories and health care plants.
NJP-400 automatic capsules filling machine is an intermittent motion and hole plate type full automatic capsule filler. It adopts optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stably running etc. It can finish the following motion at the same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc. It is the most ideal hard capsule filling equipment for the pharmaceutical and health food industry.
Main Features
1. The machine acquires such advantages as small volume, low energy consumption, convenient operation and cleaning.
2. Equipment standardization and component interchangeability enable molds to be changed quickly and accurately.
3. The design of bottom installation of the cam can increase the pressure atomizing oil pump, keep the cam groove lubricated, reduce wear and extend the service life of parts.
4. High-accuracy indexer is applied for slight vibration and operation noise lower than 80db. In addition, vacuum locating structure is used to achieve over 99.9% of the capsule probability.
5. The lower plane of dosing tray is the benchmark for three-dimensional adjustment, uniform gap, narrow filling quantity distribution and convenient cleaning.
6. HMI is applied for perfect functions. Besides, when material or capsules are lack or material channel is faulty, the machine can alarm and stop automatically. it can also count for every capsules and display the value of cumulative output.
Item | Automatic capsule filling machine | ||||
Model No. | NJP-200 | NJP-400 | NJP-800 | NJP-1200 | NJP-2500 |
Max Capacity (pcs/min) | 200 capsules | 400 capsules | 800 capsules | 1200 capsules | 2500 capsules |
Filling type | Powder, Pellet,micro pill,tablet | ||||
No. of Dose/holes of each mold | 2 | 3 | 6 | 9 | 18 |

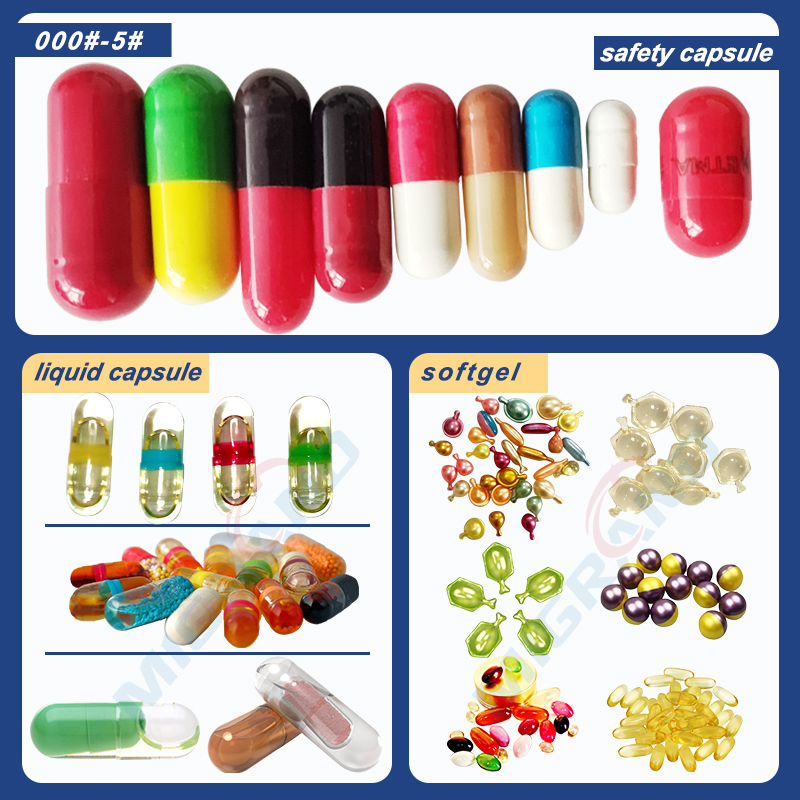

Suitable for Capsule | 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# | ||||
Noise | ≤75dB(A) | ≤75dB(A) | ≤75dB(A) | ≤75dB(A) | ≤75dB(A) |
Voltage | 380V 50Hz 3P Or customized | ||||
Total Power | 3.75Kw | 3.75Kw | 5.57Kw | 5.57Kw | 6.97Kw |
Overall Weight | 600Kg | 600Kg | 900Kg | 900Kg | 1300Kg |
Gross Weight | 650Kg | 650Kg | 985Kg | 985Kg | 1400Kg |
Machine Dimension | 750*680*1700 | 750*680*1700 | 1020*860*1970 | 1020*860*1970 | 1200*1050*2100 |
Packing Dimension mm | 1600*1050*1900 | 1600mm*1050*1900 | 1420*1220*1940 | 1420*1220*1940 | 1910*1600*2000 |
