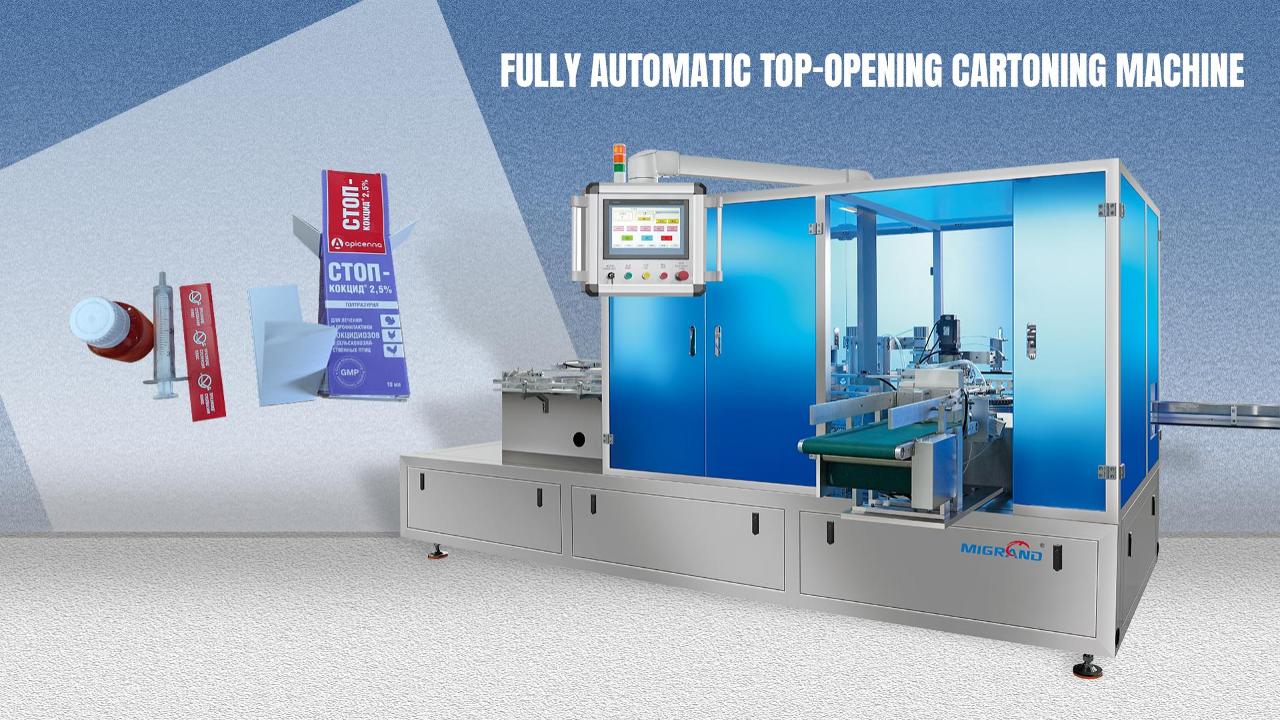

Cartoning machines are categorized into horizontal cartoning machines, vertical cartoning machines, linear cartoner, rotary cartoner, side-push cartoning machines, and top-loading cartoning machines. What type of packaging machine is used for top-opening boxes?

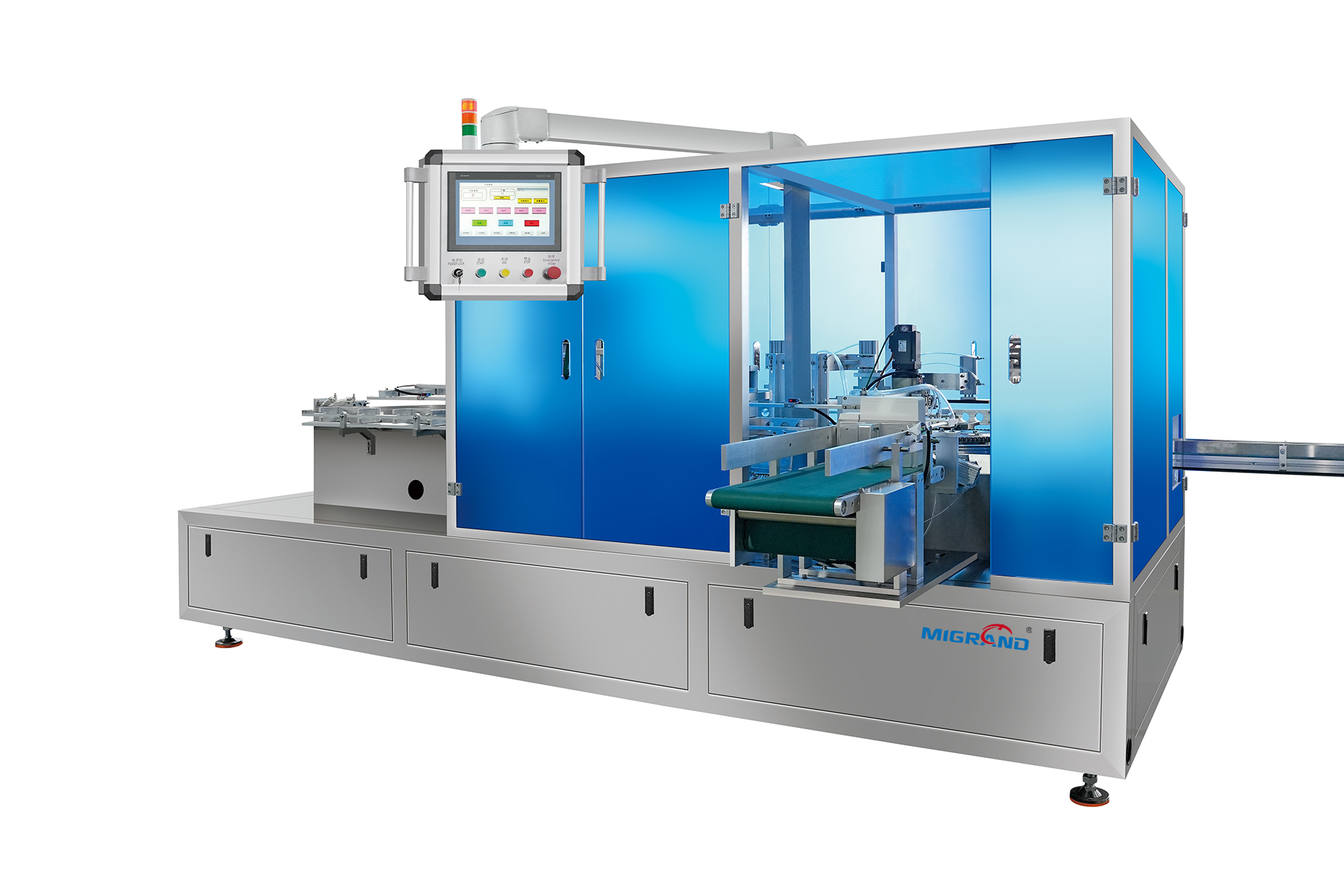

In addition to the GDC-50 model, we have developed a new GDC-60 rotary top-loading cartoning machine.
Main Technical Parameters
Boxing Speed:
5-50 boxes per minute (depending on customer's boxes and products)
Box Size Range:
(Mold change required) Minimum: 60×90×50 mm Maximum: 180×210×110 mm
Box Weight Requirements：
350-450g/m³
Power Supply:
380V 50HZ
Air Pressure:
≥0.6mpa
Weight:
Approx. 1700kg
Dimensions:
3920mm×1850mm×1950mm (See drawings for details)
Boxed samples
Features

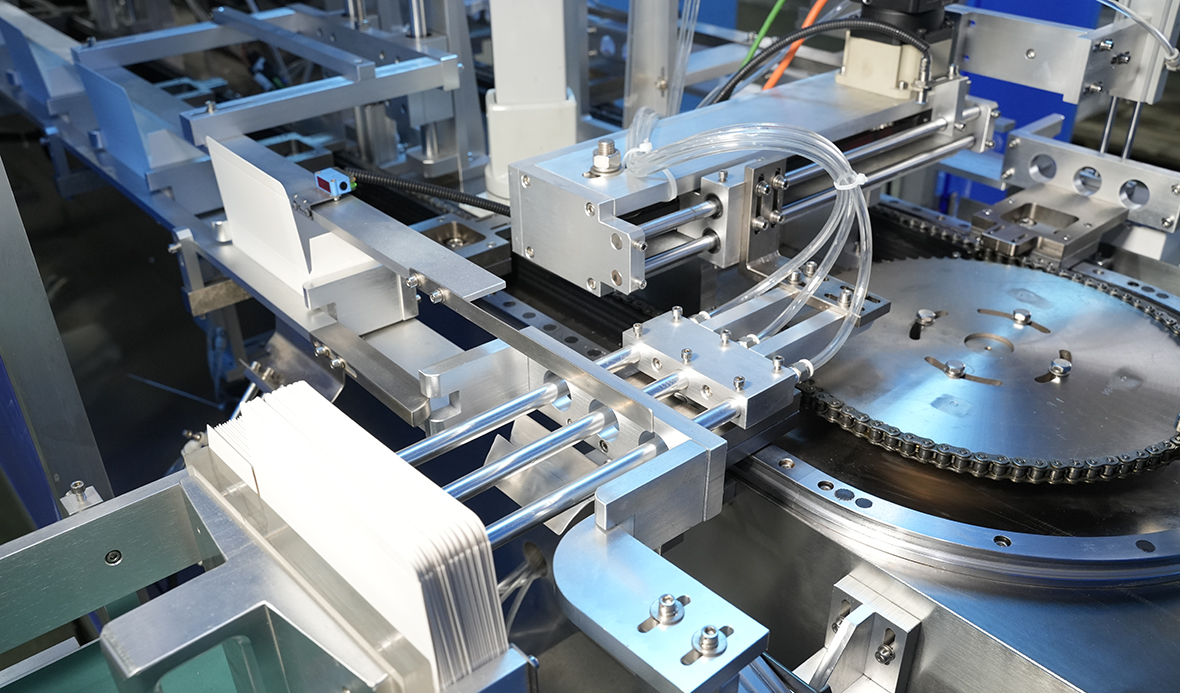

Cardboard box suction open
Servo drive, suction action adjustment is completed within the touch screen, simple and easy to adjust.

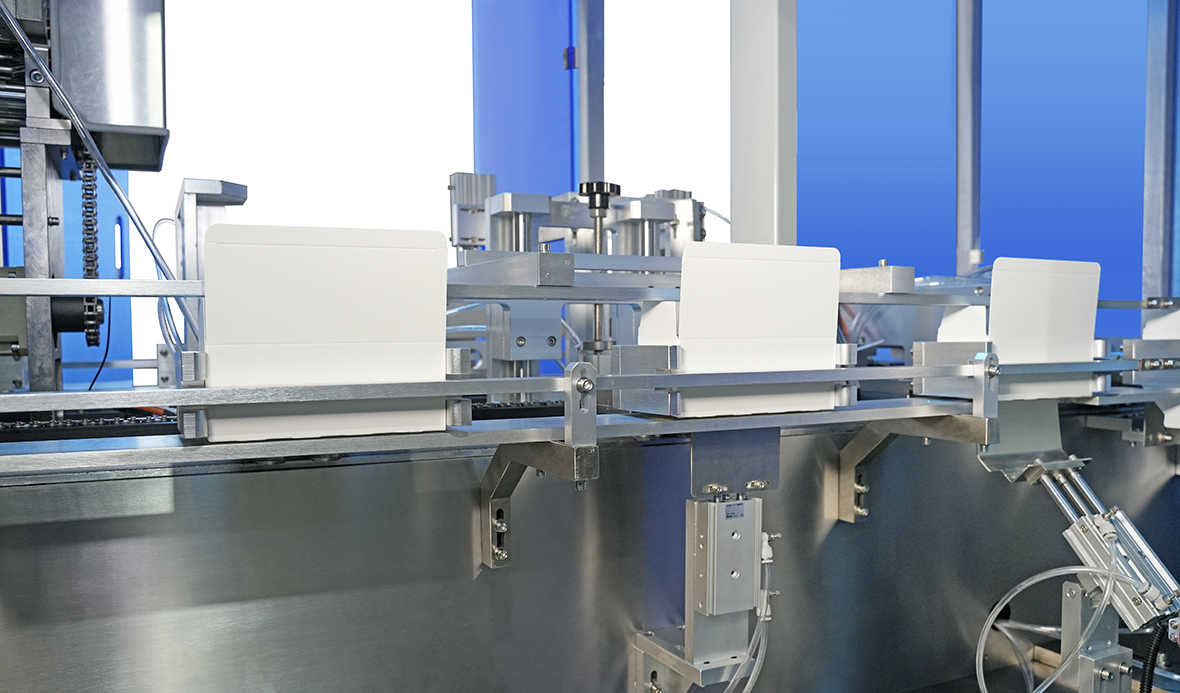

Carton transfer
The whole machine adopts a paper box conveying method with all-aluminum molds and circular guide rails, which is different from the traditional chain conveyor method and can increase the service life of the molds and equipment.

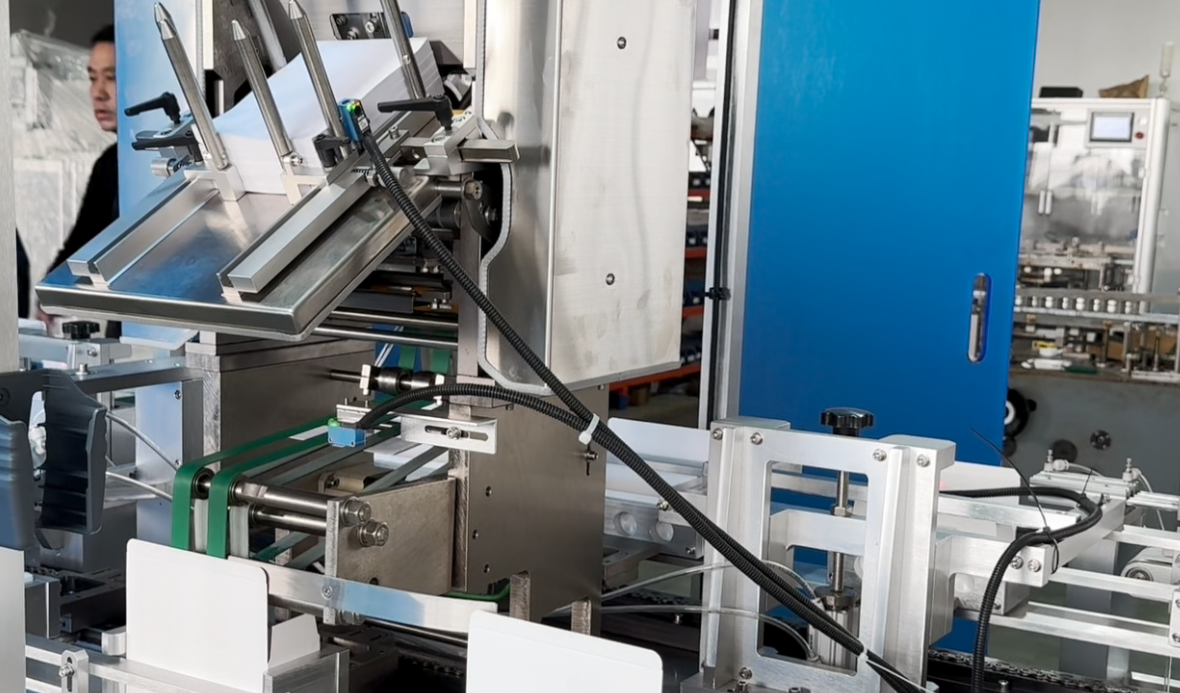

Instruction folding and conveying mechanism
Automatically folds and loads instruction manuals with precise control, detection, and rejection, ensuring no omissions or overloading.

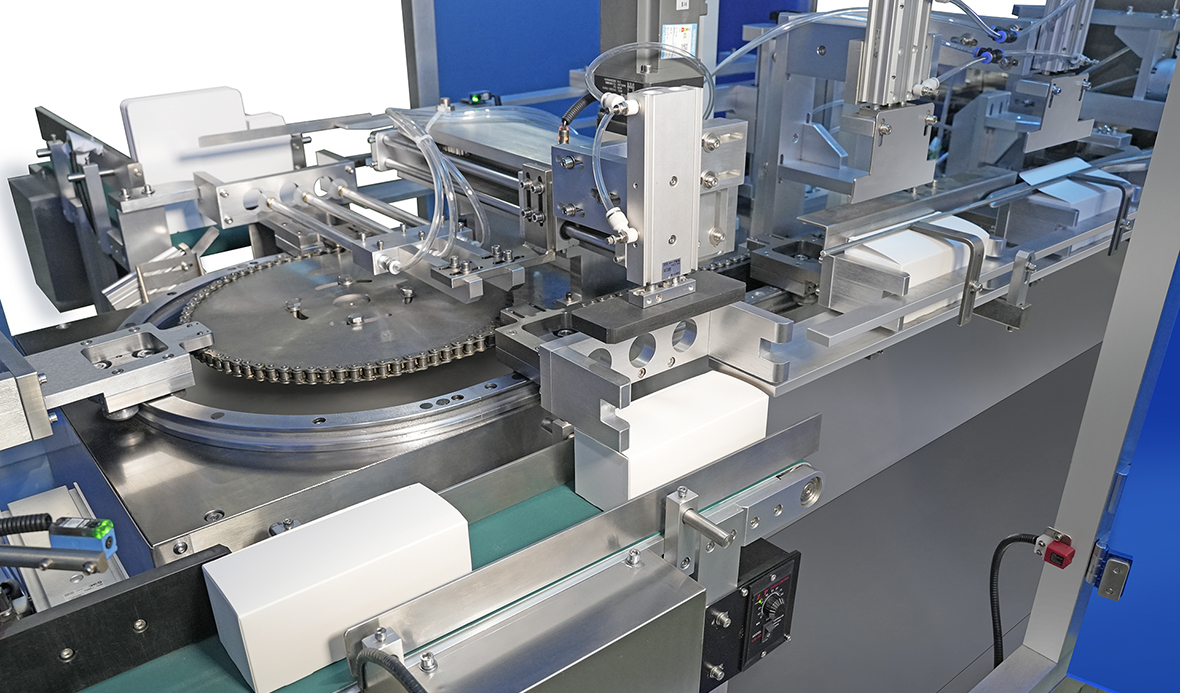

Finished Product Output
The finished product output includes an in-box inspection and rejection mechanism to ensure that all finished products output are qualified.
In addition to the GDC-50 model, we have developed a new GDC-60 rotary top-loading cartoning machine.
Main Technical Parameters
Boxing Speed:
5-50 boxes per minute (depending on customer's boxes and products)
Box Size Range:
(Mold change required) Minimum: 60×90×50 mm Maximum: 180×210×110 mm
Box Weight Requirements：
350-450g/m³
Power Supply:
380V 50HZ
Air Pressure:
≥0.6mpa
Weight:
Approx. 1700kg
Dimensions:
3920mm×1850mm×1950mm (See drawings for details)
Boxed samples
Features
Cardboard box suction open
Servo drive, suction action adjustment is completed within the touch screen, simple and easy to adjust.
Carton transfer
The whole machine adopts a paper box conveying method with all-aluminum molds and circular guide rails, which is different from the traditional chain conveyor method and can increase the service life of the molds and equipment.
Instruction folding and conveying mechanism
Automatically folds and loads instruction manuals with precise control, detection, and rejection, ensuring no omissions or overloading.
Finished Product Output
The finished product output includes an in-box inspection and rejection mechanism to ensure that all finished products output are qualified.
