Note:The equipment is a non-calibrated folding box packing machine, which can be customized according to any needs. The following description is a single case for reference only.
Before carton forming
Paper carton pre-fold
Carton folding box
Carton gluing
Carton bin - Reclaiming -Stamping preforming- Put the product -Fold the inner lid box -Gluing -Fold the outer over -Finished product.

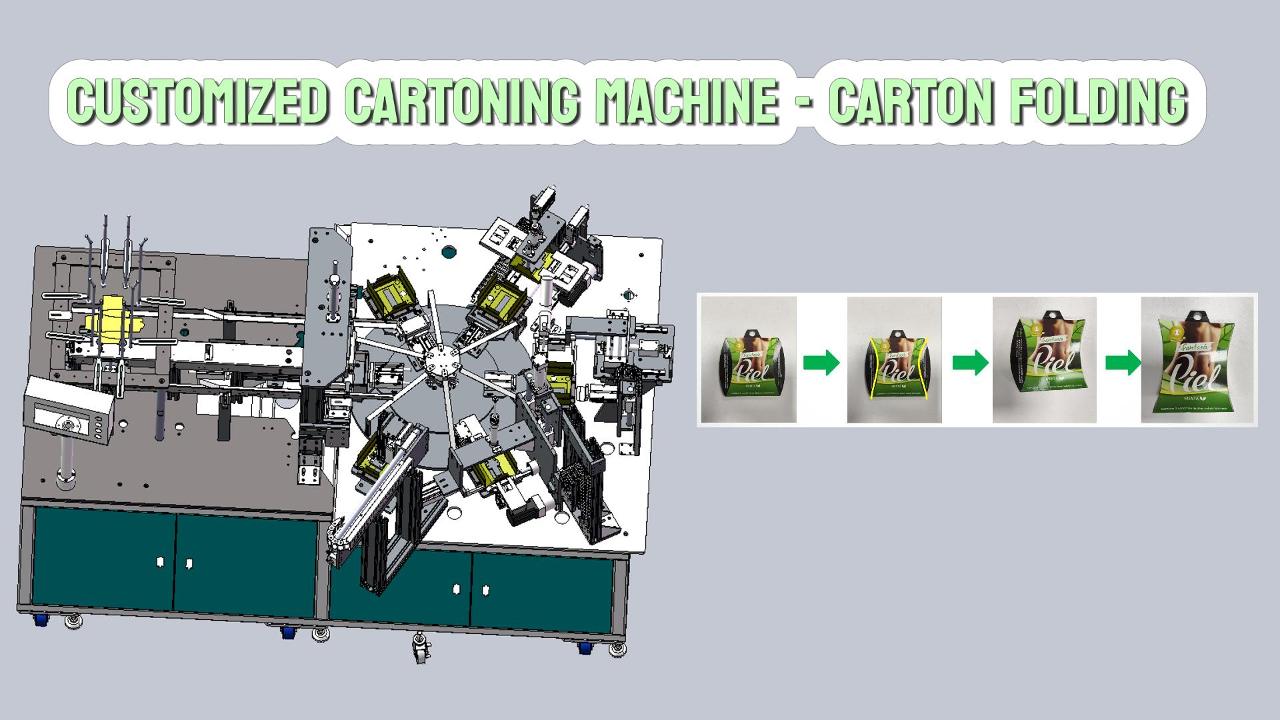

1、The box folding machine primarily consists of a chassis, a hopper, a carton removal robot, and a carton forming station.
2、It accommodates a variety of carton sizes and specifications, enabling quick and easy switching. Adjustment stations are primarily controlled by handwheels and screws.
3、The machine operates stably and quickly, preventing product damage during the production process.
4、The hopper utilizes a top-down loading mechanism, enabling continuous loading without interruption. If the hopper is low on material or the material is being removed abnormally during operation, the machine will generate an alarm and shut down.
5、For safety and effective protection, the machine's moving parts are equipped with safety guards. Parts that come into contact with the product are weld-free, polished, and passivated. The motor must shut down and generate an alarm if it is overloaded or if the rated load is exceeded.
6、The equipment complies with national quality standards, environmental protection standards, electrical safety standards, and other relevant standards. All solenoid valves and control signal feedback utilize a 24V DC power supply. The 24V power supply and the DC power supply for the PLC controller are powered by a dedicated high-power switching regulated power supply.
7、It can be connected to the rear belt line. If there is a carton at the rear, the folding machine will automatically pause production. If there is no carton at the rear, the folding machine will automatically resume production.
1. The carton hopper is stocked with material. The material suction cup moves upward and downward to remove the carton from the punching hopper and transfer it to the stamping station for stamping.
2. The carton is stamped and placed on a turntable (with a forming mold).
3. After the carton is formed and placed on the loading tray, it is loaded into the next process for boxing. After boxing is completed, the inner cover of the carton is folded.
4. After the inner cover is folded, the turntable moves to the next process for gluing. After gluing, the turntable continues to transfer the carton to the next station for folding the outer cover.
