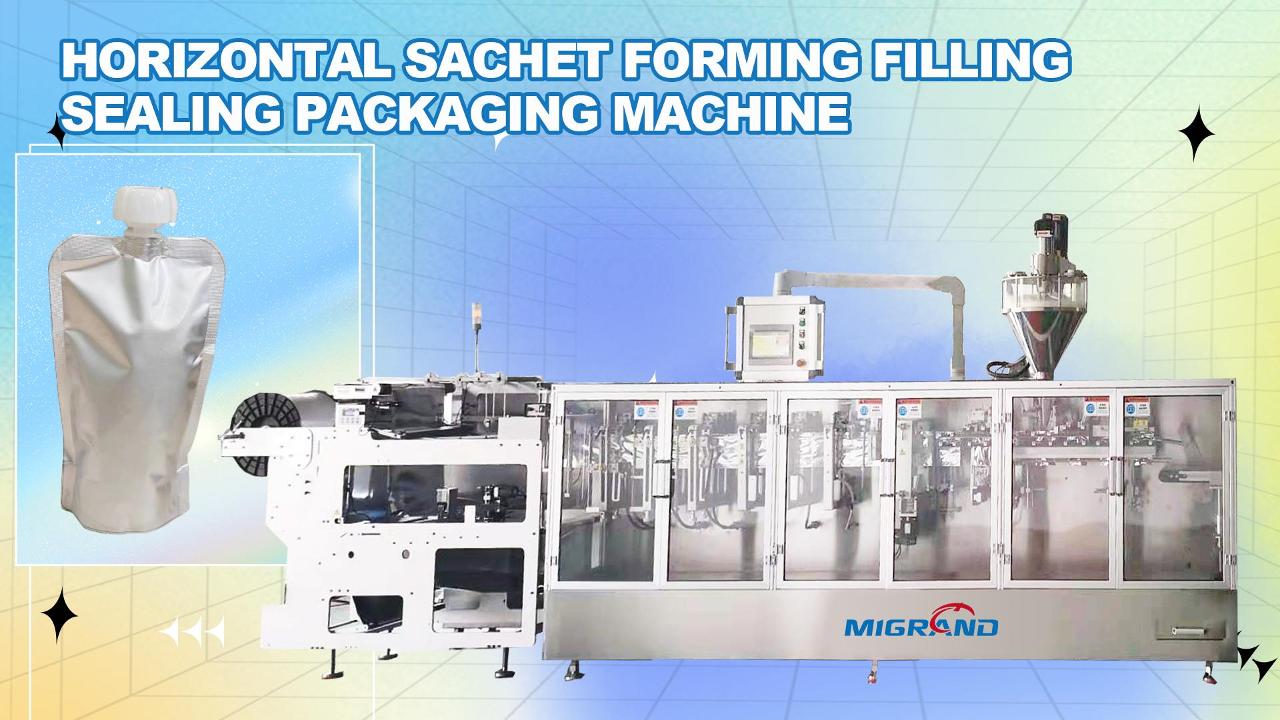

GTS-1600 Doypack Froming Filling Sealing Packaging Machine for Liquid

What is Horizontal doypack forming filling sealing packaging machine?

This model is designed for small-volume pouches (under 1000cc) and offers exceptional flexibility and versatility, capable of producing stand-up pouches in a wide range of sizes. It accommodates various sealing configurations—such as zipper stand-up pouches, spouted stand-up pouches, and spouted flat pouches—to meet diverse packaging requirements.

How does a thermoforming filling sealing machine work?

Thermoforming filling sealing machine is to heat the thermoformable plastic such as PET/PE, PET/EVOH/PE, PS/PE, PS/EVOH/PE, PVC/PE, PVC/PVDC/PE etc and blow the heated and soften plastic in the forming mould to obtain the required pouch shape and size, fill the liquid and semi-liquid or solid(powder/granules,etc.) from the auto feeder and then add the spout,seal the sout , punch to get the final required single serve package.

Application for thermoforming filling sealing machine

suitable for food, pharmaceutical, cosmetics and other industries.

The horizontal packaging machine is suitable for packaging dry powders, granules, liquids, Gels, etc.

Technical characteristics

1. User-friendly operation: Features a Japanese Mitsubishi CPU, paired with a matching touchscreen interface and electrical control system.

2. Safety mechanisms: Automatically halts operation and triggers an alarm in the event of abnormal air pressure.

3. Bag-opening detection: The equipment is fitted with a sensor that prevents filling or sealing if a bag fails to open (thereby preventing product waste and equipment contamination).

4. Glass safety doors: The machine automatically stops when the doors are opened, ensuring operator safety while also serving to prevent dust ingress.

5. Hygienic construction: All components in direct contact with the product are constructed from stainless steel or other materials compliant with food hygiene standards, thereby guaranteeing food safety.

Process Flow Chart

Filling

Add Spout(Optional)

Main Technical Parameters

Filler and Feeder
