1. Introduction

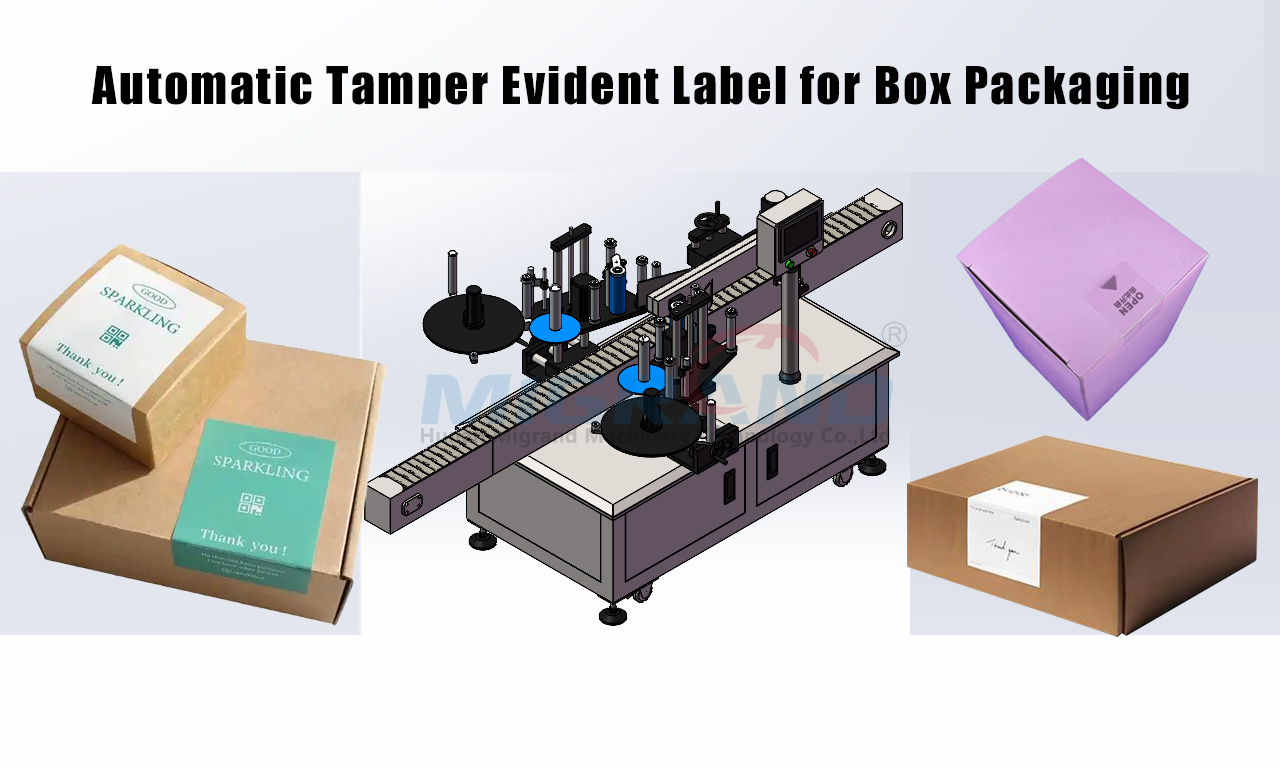

This machine is specialized automatic labeling machine designed for tamper-evident corner labeling on box surfaces and edges. It applies labels precisely to prevent unauthorized opening. The system supports optional integration with ribbon or inkjet printers for simultaneous coding—batch numbers, production dates, and expiry info—during labeling. With customizable configurations to fit your packaging and label sizes, this machine streamlines your workflow and enhances product security and traceability.
The whole machine has a sophisticated design, eliminating unnecessary mechanical complexity and bulkiness. It can be assembled in a set and maintained without professional personnel. When the product needs to be replaced, it can be put into production immediately with a simple adjustment.
2. Main Features
1) The whole machine is made of stainless steel and high-grade aluminum alloy.
2) All electric eyes are high-grade photoelectric electric famous brand ones.
3) PLC is controlled with a large human-machine interface.
4) This machine is suitable for single-machine and single-person operation of small quantities of diverse products.
5) This machine has mechanisms for bottle guiding, bottle separation, labeling, wheel leveling, counting, etc.
6) It can be used in conjunction with a conveyor belt in the production line.
3. Technical Parameters
Power supply | AC 220V, 50Hz |
Production speed | 50-80pcs/min (it depends on product) |
Product size | 20≤W≤200mm, L≥200mm (can be customized) |
Label size | 20≤W≤140mm (can be customized) |
Labeling error | ±1mm |
Machine dimension (L*W*H) | 3000mm*1400mm*1650mm |
Machine weight | 300KG |
4. Main Configuration List
No. | Name | Brand |
1 | PLC | SIEMENS |
2 | Touch screen | SIEMENS |
3 | Conveyor motor | ZD |
4 | Cylinder | AIRTAC |
5 | Label sensor | SICK |
6 | Container sensor | PANASONIC |
7 | Frequency converter | COREKEN |
Remark | It will not be further informed that configurations are changed to equivalent or better ones depending on the real production situation. |
