Differences Between Cartridge, Vial, and Ampoule – and How to Choose Filling & Packaging Equipment

1. Key Differences at a Glance

2. Equipment Selection Guide for Each Container Type

2.1 Cartridges – High‑Precision Aseptic Filling + Piston Insertion + Crimping

Cartridges have the most complex structure (glass barrel + piston + rear cap) and require the most demanding equipment.

Recommended core equipment:

• Washing & sterilisation – Dedicated cartridge washing and siliconisation equipment; terminal sterilisation requires a cartridge‑compatible autoclave.

• Filling – High‑accuracy peristaltic or piston pumps (accuracy ±0.5 % to 1 %); nitrogen flushing is strongly recommended for oxygen‑sensitive biologics.

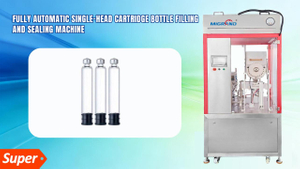

• Piston insertion & crimping – The critical step. A dedicated cartridge filling & crimping monobloc inserts the piston (with air‑exhaust function) and crimps the aluminium cap on the opposite end.

Selection Recommendation: Prioritize equipment featuring a peristaltic pump filling system and a servo-controlled stoppering module, as this ensures consistency in piston positioning and the tightness of the capping seal. Established solutions are available from German manufacturer Bosch, as well as from select high-end domestic pharmaceutical machinery manufacturers in China—such as Migrand Machinery.

2.2 Vials – Standard Wash‑Dry‑Sterilise‑Fill‑Crimp Line

Vials are the most common pharmaceutical container and have the highest degree of automation.

Recommended core equipment:

• Washer – Fully automatic ultrasonic washing machine, typically for 2 ml to 100 ml vials. Modern servo‑controlled machines achieve <0.1 % breakage.

• Tunnel steriliser – Depyrogenation at >350 °C (hot air).

• Filler – Peristaltic or time‑pressure pumps for liquids; auger filler for powders.

• Stoppering & crimping – Partial stoppering (for lyophilisation) and full stoppering functions. A rotary crimping machine seals the aluminium cap.

Selection advice for European buyers:
For R&D or small batches, a table‑top monobloc (filling + stoppering + crimping, 3000 -6000vials/hour) is cost‑effective. For commercial production, look for integrated wash‑fill‑finish lines meeting CE standards.

2.3 Ampoules – Fill‑Seal Line (Most Distinctive)

Ampoules require a fundamentally different sealing method: tip‑sealing by flame.

Recommended core equipment:

• Washing & drying – Similar to vials: ultrasonic washer + tunnel steriliser.

• Filling & sealing – Ampoule filling & sealing machine (ampoule fill‑seal). After filling, the neck is molten and sealed by high‑temperature gas flames (or electric heating in some modern units). Flame control and jaw movement precision are critical to avoid glass particles.

• Leak testing – A leak tester (e.g., vacuum‑based or dye‑bath) is essential after sealing.

Selection advice for European buyers:
Choose the number of filling needles based on output: 2‑needle (~3000 ampoules/h), 4‑needle (4500~7800/h), or 6‑needle (6000~11000/h),8‑needle (7500~16000/h). For very high volumes, Ampoule Washing, Drying, Filling, and Sealing Integrated Line (e.g., Migrand Machinery) offers up to 40,000 ampoules/h, but requires different validation.

3. Summary – Which Container & Equipment Should You Choose?

Notes for European Readers

• EU GMP Annex 1 (2022) significantly affects aseptic filling – pay special attention to Grade A environment and sterilisation by filtration.

• CE marking is required for machinery placed on the EU market.

• If you need specific supplier recommendations (quality, service, cost‑performance),  customer references within the EU, and validation documentation (IQ/OQ/PQ).

  Migrand Machinery can provide complete 3Q documentation, and even 4Q documentation.
