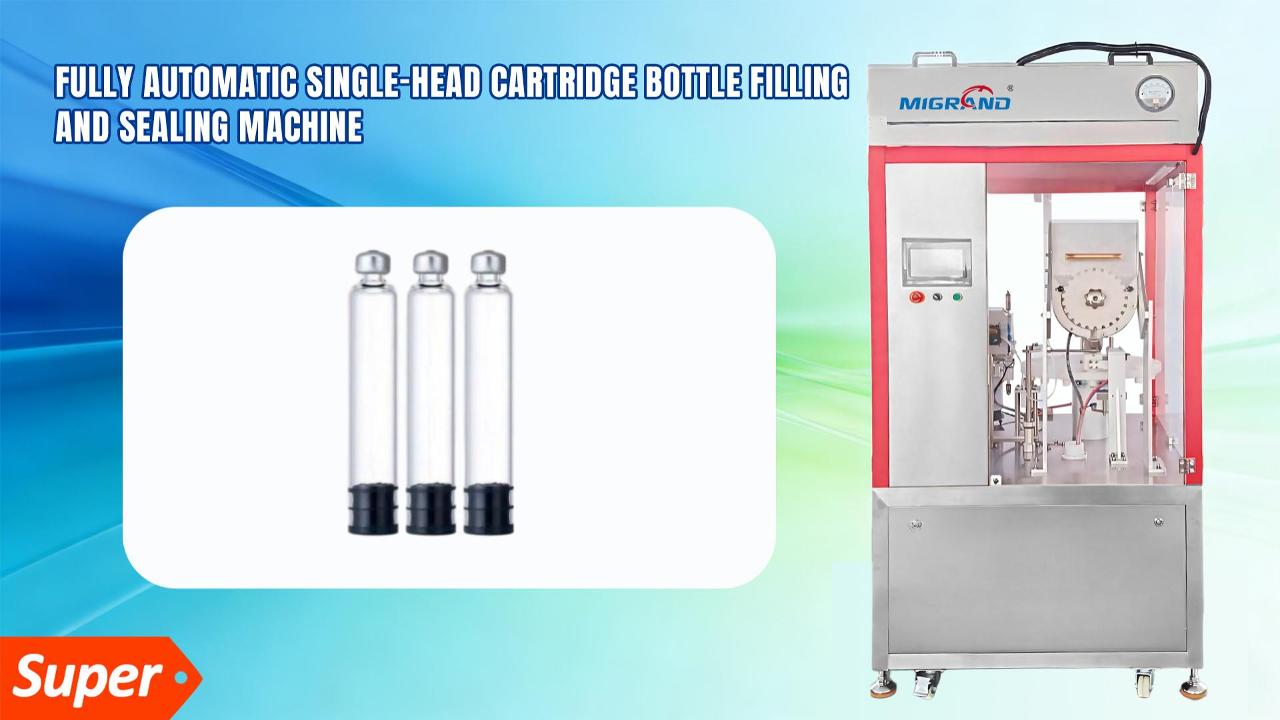

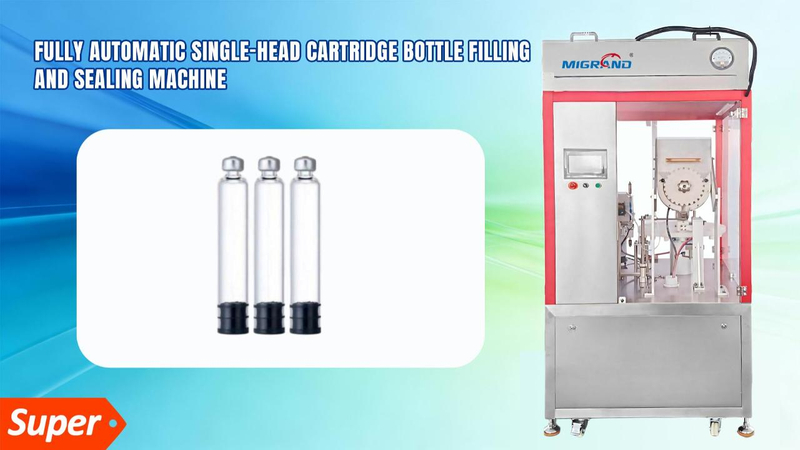

Fully Automatic Single-Head Cartridge Bottle Filling and Sealing Machine
I. Process Flow:
Manual bottle loading into the hopper → Automatic bottle feeding → Automatic filling → Automatic vacuuming and stopper insertion → Bottle lifting and ejection → Finished product output
II. Application Scope:
This machine is widely used in the pharmaceutical, food, chemical, and cosmetics industries for the processing of liquid-filled cartridge bottles. It integrates various processes including hopper-based bottle feeding, automatic filling, automatic stopper insertion, and automatic bottle ejection. The system utilizes a hopper-style bottle feeding mechanism and a servo-driven rotary indexing table to ensure precise filling. When a bottle reaches the stopper insertion station, the system automatically verifies its correct positioning; the stopper is then guided via a vibrating feeder track into the designated station, followed by vacuuming and the insertion of the inner stopper. Finally, a lifting cylinder ejects the bottle from the mold, thereby completing the processing of a single product. The machine is adaptable to bottles of varying heights and specifications. Its design features a compact structure, comprehensive functionality, convenient adjustment, stable operation, and excellent cost-effectiveness.
III. Product Features:
1. Innovative vibrating feeder lifting mechanism (enabling single-person operation and adjustment within five minutes, without the need to reposition the machine's leveling feet).
2. Compact overall footprint (occupying approximately 1–2.5 square meters), saving valuable floor space; features an integrated design with adjustable height compatibility for various bottles.
3. Automatic alarm or machine shutdown function in the event of a missing inner stopper.
4. Hopper-based bottle feeding system with automatic detection for the absence of bottles.
5. Standard Configuration: Servo-driven rotary indexing table and missing-stopper alarm system.
TECHNICAL PARAMETERS
| Equipment Name: | Fully Automatic Single-Head Cartridge Bottle Filling and Sealing Machine |
| Model: | GJJ-01S |
| Production Capacity: | 10–15 bottles/minute |
| Number of Filling Heads: | 1 Head |
| Filling Accuracy: | ≤ ±3% |
| Filling Drive: | Servo Motor Driven |
| Filling Mode: | Peristaltic Pump Filling |
| Filling Range: | 1 ml – 10 ml |
| Applicable Bottle Height: | (Customizable upon request) |
| Bottle Body Diameter: | (Customizable upon request) |
| Plugging Method: | Vacuum Stopper Insertion |
| Total Voltage/Power: | 3.5 kW |
| Bottle unscrambler: | Hopper-style Bottle Feeding |
| Filling Lifting Mechanism: | Servo-controlled Filling Lift |
| Applicable Cap Types: | (Adapted to customer's packaging materials) |
| Power Supply: | 380 V / 50 Hz |
| Air Source: | 0.6 MPa – 0.8 MPa |
| Dimensions (L×W×H): | 1100 × 1050 × 2150 mm |
| Net Weight: | 200 kg |
