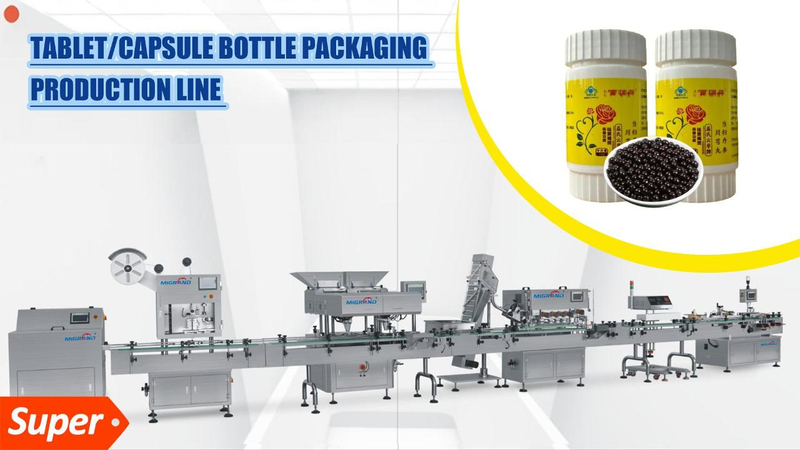

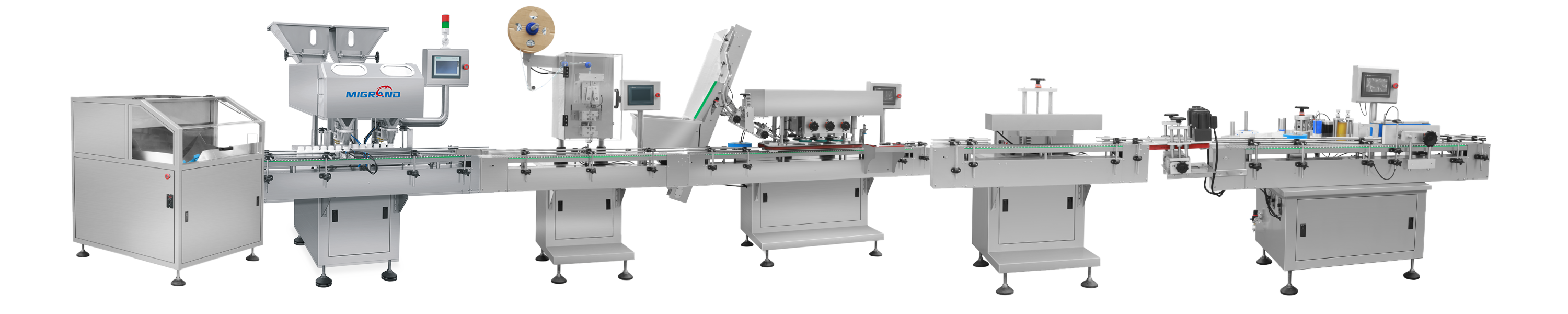

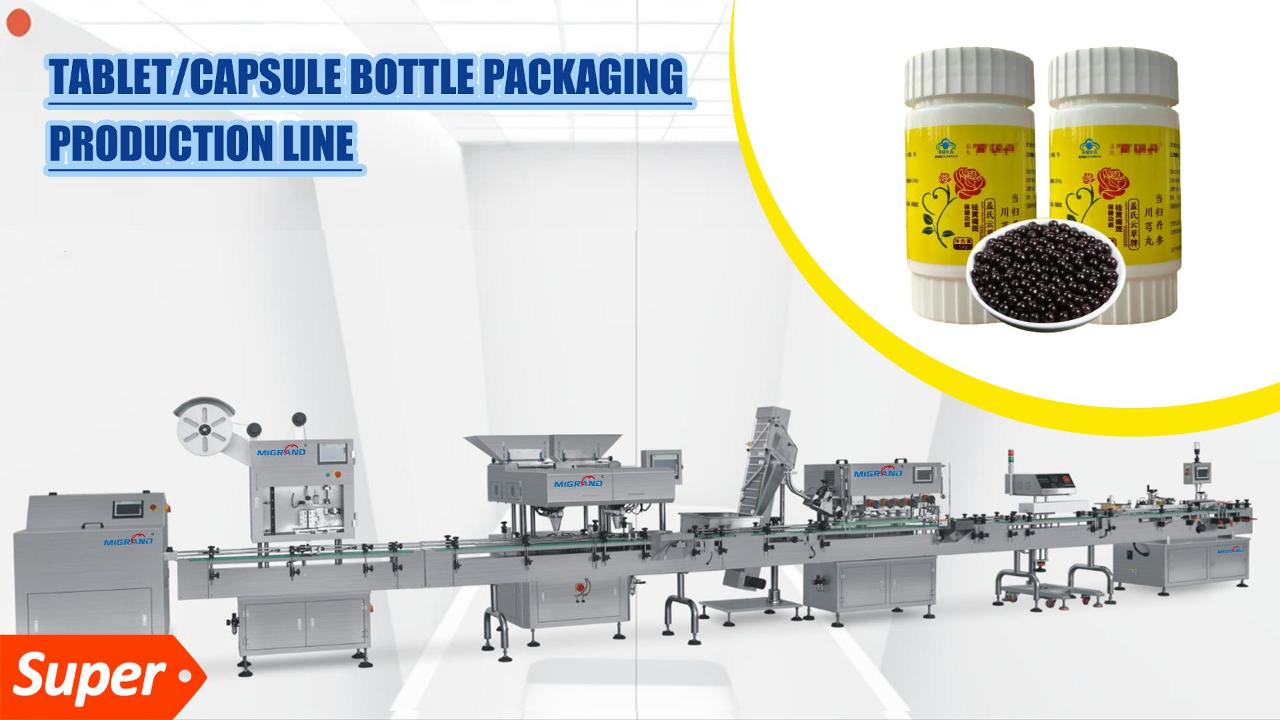

16-Channel CCD Pills Counting Bottling Machine

Working principle

◆ Bottle Unscrambler

◆ GD-16 Electric Counting Machine (Vibration for feeding, rejecting defectives)

In the bottle conveying mechanism, the bottle stopper on bottle feeding track block bottles from the last procedure in the bottling position for filling. Under the vibration of the feeding corrugated plate, the products orderly enter the silo where the counting photoelectric sensor is installed. The products fall into the medicine silo and are quantitatively counted by the photoelectric counting sensor, and then filled into the bottle at the bottling position.

◆ Desiccant Input Machine

◆ Capping Machine

◆ Magnetic induction sealing machine

◆ Labeling machine

◆ Bottle Unscrambler

◆ Cartoning Machine

Main features

1) Good compatibility, applicable for counting and bottling solid preparations or solid particles such as tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills, etc.;

2) Vibration for feeding: 16-channel vibration and unique patented flap dispensing mechanism for feeding uniformly and stably without damage to products;

3) Suitable for dusty environment: using our original anti-dust photoelectric sensing technology, which can work stably in dusty environment;

4) Accurate counting: count by photoelectric sensor automatically, and bottling error is less than the national standard;

5) Feeding nozzle with special cylinder vibrating structure can avoid product blockage, even bottles with a small mouth can also be quickly fed;

6) High intelligent, no bottles no count, fault self-detection and other detection and alarm functions;

7) Complement functions: with photoelectric sensor automatic detection, if there is no bottle, the machine will shutdown automatically;

8) Simple operation: with intelligent design, various operating parameters are set according to different requirements;

9) Easy maintenance: operators only need simple training to operate the machine, which is easy and convenient to disassemble, clean and replace parts without special tools;

10) Sealed and dustproof: equipped with a dust removal box to reduce dust pollution (optional).
