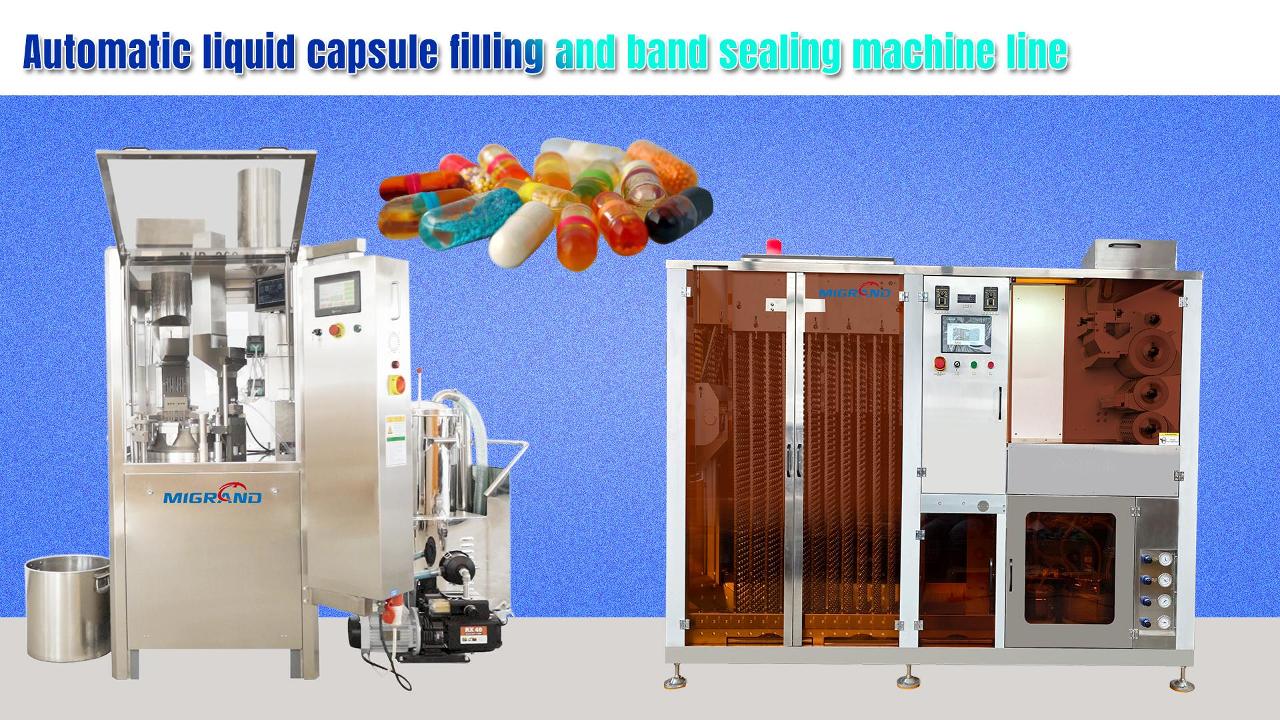

NJP-260C, NJP-600C ,NJP-1000 series of automatic hard capsule liquid filling machines are the most advanced products in the domestic and foreign markets.
High configuration reducer, vacuum pump, cam indexer, electrical components, select international famous brand products, machine performance is quite stable.
It has the advantages of good sealing performance, frequency conversion stepless speed regulation, simple operation system, high capsule loading probability, accurate loading, small size, low energy consumption, high output, standardized and serialized products, low noise and small vibration, and its main technical indicators are at the international advanced level.00 # ~ 5 # hard capsules and safety capsules A, B, C, D and E can be filled by installing corresponding molds.
The function of the machine is perfect.The third and fifth stations are designed to be reserved for expansion, and the corresponding devices are installed, so that the slow-release pellets and tablets can be filled separately, or mixed with the liquid medicine in the same capsule.The machine is equipped with optical fiber sensor and high-speed panel micro-printer, which can be set to print automatically or manually, and can provide text description of current output, cumulative output, cycle yield and yield at any time.
The intelligent human-computer interface dialogue system monitors the online situation of each work unit.Through the touch screen with alarm information, the programmable controller can prompt the working state of the main motor, the vacuum pump, the liquid stirring motor, the door, etc., the capacity and position of the capsule hopper and the liquid hopper, the actual quantity of finished products, the yield, whether the capsule feeding channel is blocked, whether the die hole is blocked, and whether the operator has misoperation.It is the only integrated management system with sound alarm and information prompt.This machine has a communication port, which can realize the docking with the computer and adapt to the modern production management.
| Model | NJP-260 | NJP-600 | NJP-1000 |
| Machine weight | 900kg | 1000kg | 1200kg |
| machinel Size | 1020×860×1970mm | 1335×1080×1900mm | 2300×860×2000mm |
| Motor power | 5.75kw | 7.75kw | 7.75kw |
| Supply voltage | 3P AC 380V;50Hz | ||
| Capacity | 260pcs/min | 600pcs/min | 1000pcs/min |
| Capsule size | 00#～5# and safety capsuleA～E | ||
| Noise | ≤75dBA | ||
| Accuracy | liquid 300mg以上≤±3％ | ||
| Compressed air | 0.06m3/min 0.3Mpa | ||
| Water source | Water ring type vacuum pump distribution tank, external water source | ||
| Vacuum degree | -0.02～-0.06 MPa | ||
| Water flow | 250L/h | ||
| Inner diameter of drain pipe | 27mm | ||
| Operating temperature | 21℃±3℃ | ||
| Height of working plant | ≥2.6m-2.8m | ||
| Workshop humidity | 40～55％ | ||
| Air displacement | 300m3/h | ||
| Control System | Variable frequency stepless speed control, PLC control | ||
| Material | Parts in direct contact with 304 or 316L stainless steel | ||
| Special function | Can increase pellet/tablet/small capsule fil device | ||
More capacity needs can be customized.
NJP-260, 600, 1000 series automatic capsule filling machine can change the output of the machine by changing the die (changing the number of die holes).The maximum yield of NJP-260 with six holes is 260 grains/min, that of NJP-600 with ten holes is 600 grains/min, and that of NJP-1000 with sixteen holes is 1000 grains/min.

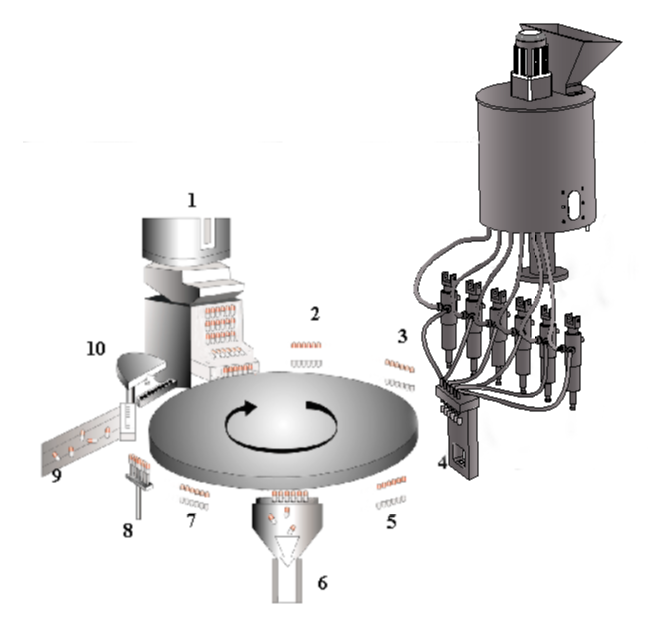

When the machine is running, the capsules in the capsule barrel on the first station will vertically enter the capsule feeding plate one by one, first pushed to the outer end of the correction block by the horizontal fork, and then into the die hole by the vertical fork and vacuum suction, and the cap and body will be separated.And that low module of the second working position descend and moves outwards.The third station is equipped with a sensor, which can detect the capsule in place in the module hole.The fourth station is for liquid filling, and the ceramic peristaltic pump pumps the liquid medicine in the liquid hopper into the capsule body.The fifth station is used as a reserved expansion station and can be provided with a pellet or tablet filling device.And the sixth station removes and sucks the defective capsules which are not separated from the cap body by vacuum air pressure.The optical fiber sensor at the seventh station detects the yield, and the lower module moves inward and rises at the same time.The eighth station locking push rod rises to lock the filled capsule.The ninth station pushes the locked capsules out for collection.The tenth station uses vacuum air pressure to clean the die hole and then enters the next cycle again.
