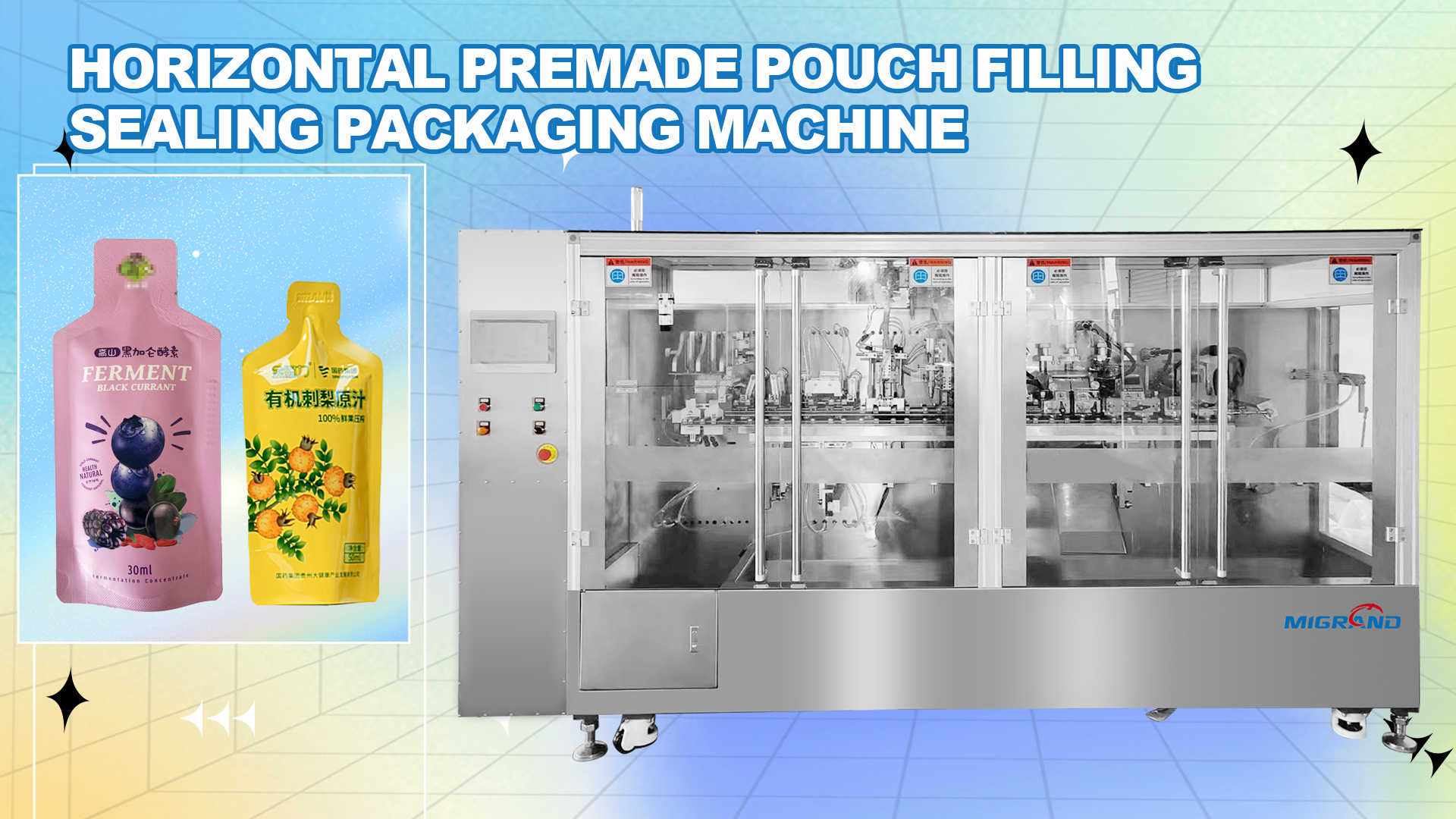

GTS2000 Premade Special-shaped Sachet Filling Sealing Machine

This is a Linear continuous type premade bag liquid filling sealing machine,

that is typically used for high value juice beverage products.
The speed is 80PPH,Compared with the vertical sachet packing machine, the horizontal machine is more stable and suitable for the production of more size bags.

Model:
GTS-2000
Brand:
MIGRAND
Code:
8422303090

Availability:

Inquire Add to Basket

Product Description

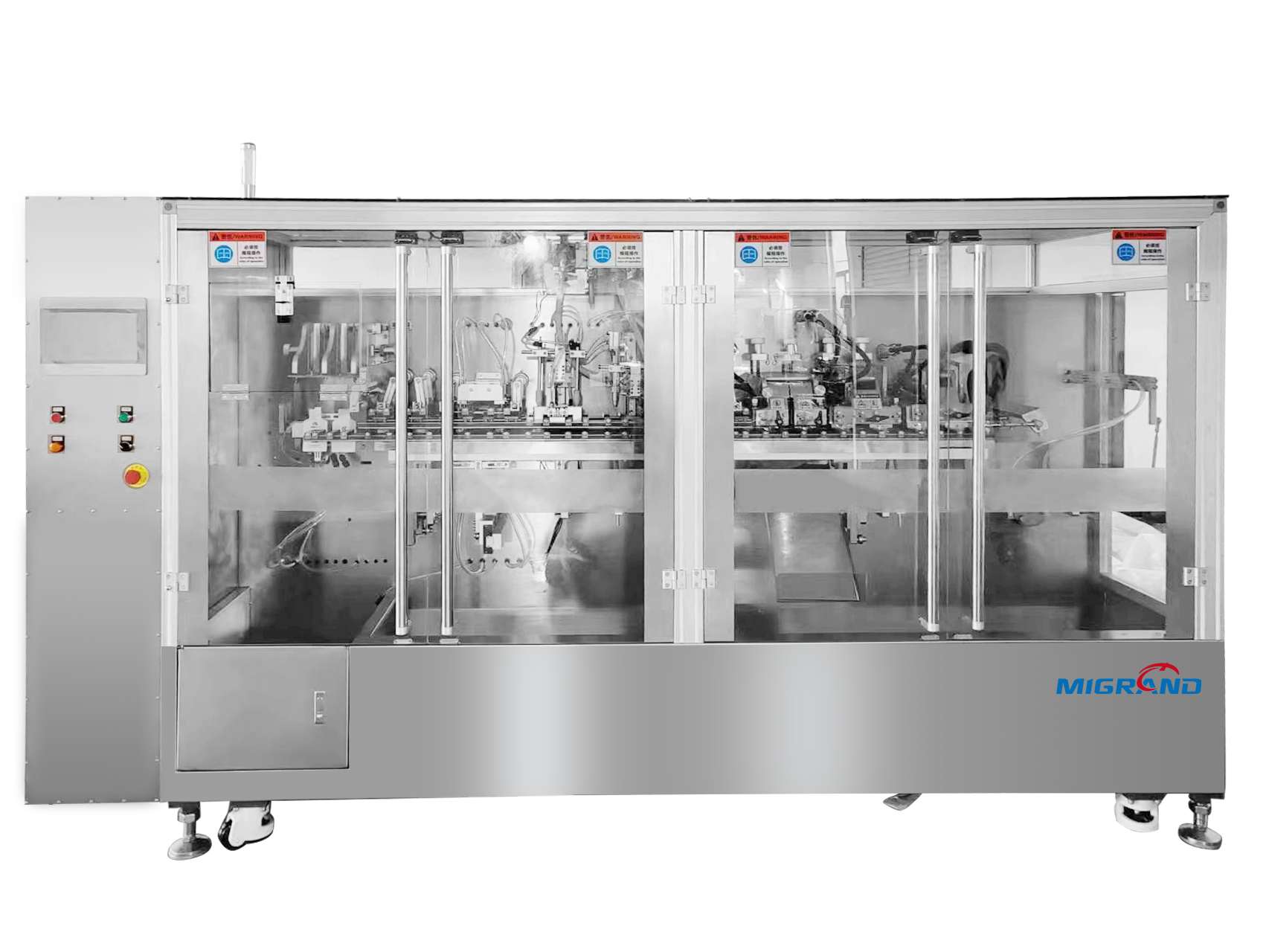

GTS2000 premade Special-shaped sachet filling sealing machine

Equipment characteristics:

In the product selection configuration, CTS2000 machine has made technical adjustments for liquid filling and packaging, specifically as follows:

1. To solve the problem of film-free alarm in continuous production(for bag forming model)

2. Servo film deviation correction device for solving film deviation(for bag forming model)

3. Bag opening auxiliary structure for improving the success rate of bag opening

4. Bag opening detection system, with the function of no filling if bag opening fails

5. Integral protection device to prevent dust from entering

6. Cleaning tank to prevent waste material leakage and equipment cleaning

7. Servo film releasing device

8. A set of water circulation cooling system

9. the filling machine with high and low viscosity material filling

10. A set of double-punch die

11. Capacity: 80 bags/min

Equipment process description

German Beck vacuum pump provides stable high-power vacuum

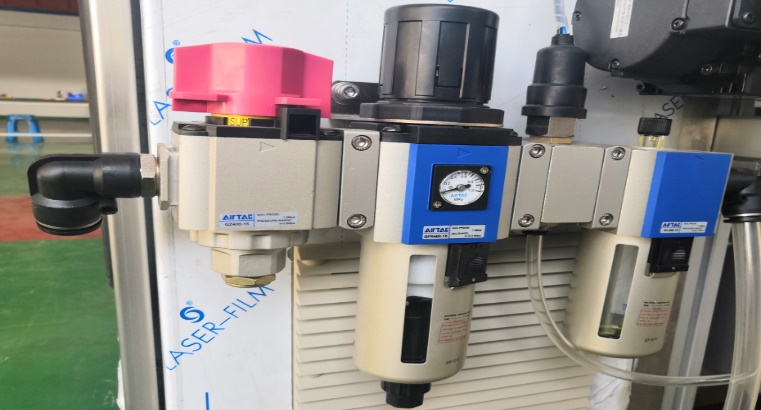

Yadeke oil-water separation filter

Vacuum detection pressure gauge, no filling without bag opening, empty bag rejection, can be used twice, reduce waste

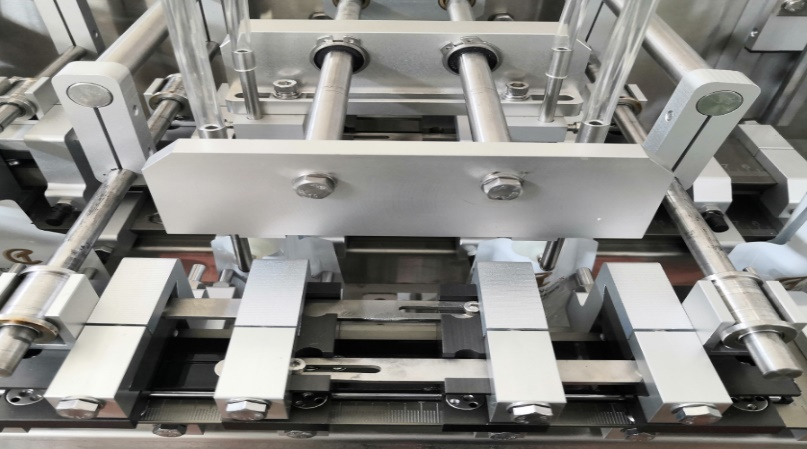

Customize the auxiliary bag opening design to ensure the success rate of bag opening

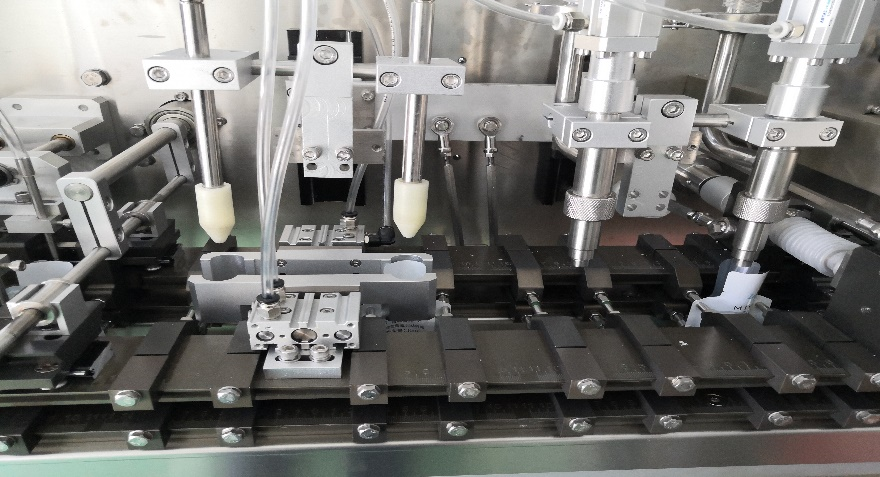

Customized special bag opening and blowing device, double-head filling

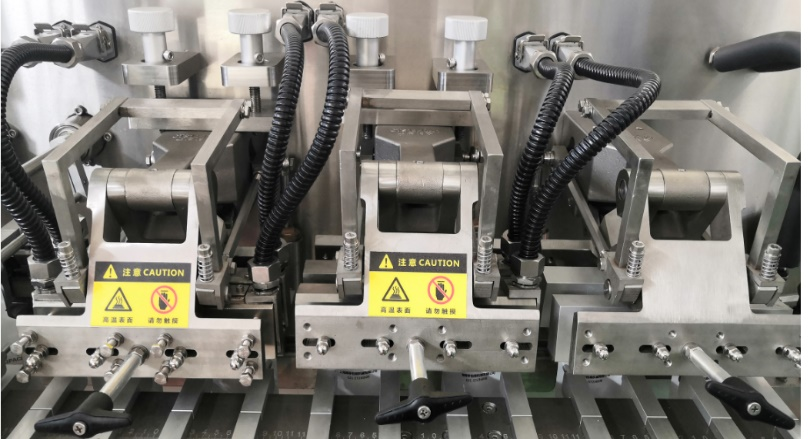

Double heat-sealing stations, one-time cooling and sealing, make the bag shape more perfect

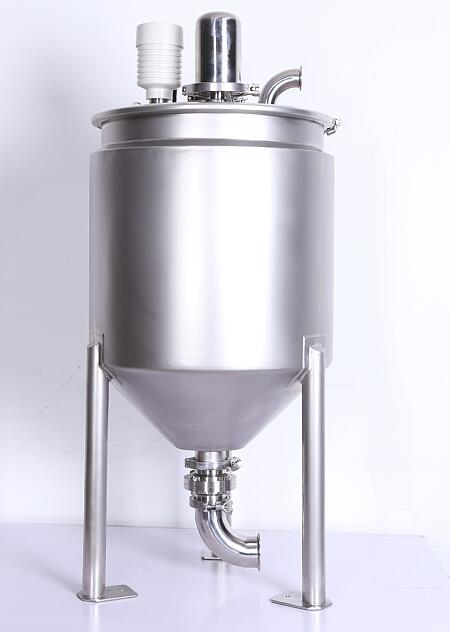

60L double-layer 316 stainless steel insulation tank (including tuning fork level gauge)

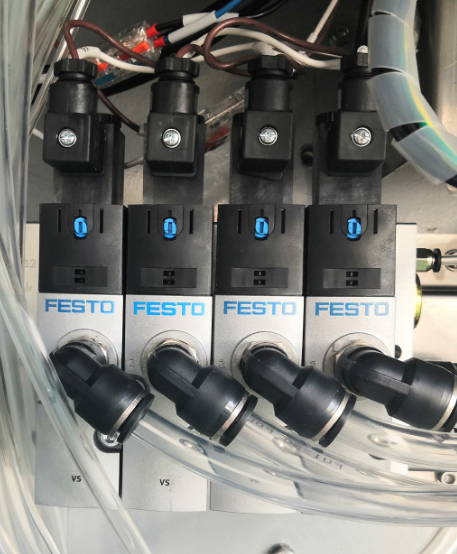

Festo vacuum solenoid valve, together with Baker vacuum pump, provides stable and large suction

High-torque cam divider ensures stable action of traction swing arm

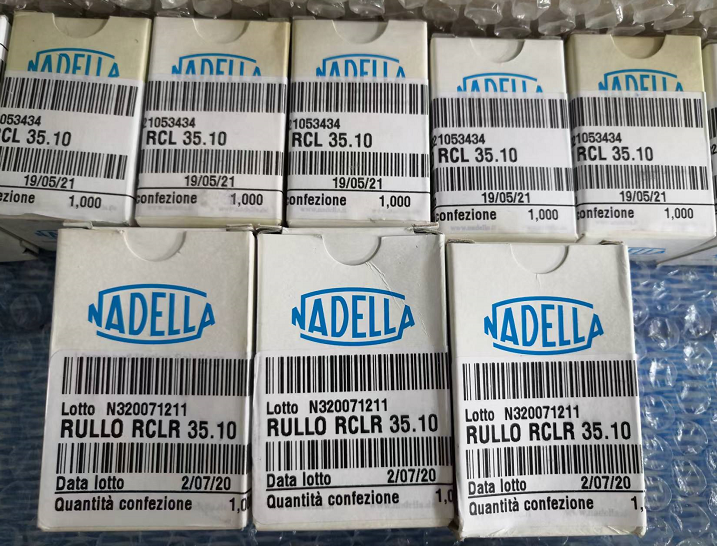

Traction swing arm bearing adopts Nadella brand imported from Germany, which is durable

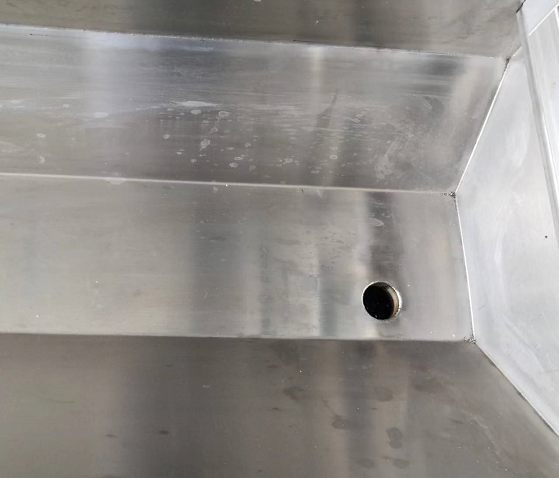

The U-shaped water collecting tank is adopted, which is convenient for cleaning the equipment every day, and the wastewater is directly discharged into the drainage system.

Technical parameters of the equipment
GTS-2000
Machine type	HFFS	premade bag feeding, filling, and sealing,output
Technology	bagging	pre-made bag
	bag conveying	intermittence
Structure	body frame	SS304 stainless steel
	part	SS304 Stainless Steel and Aluminum Alloy
	Material that comes into contact with the material	Stainless steel SUS316
Filling station		2 (with 1 heads)
Machine size	Length × Width × Height	3200×970×1390mm
Machine weight		1500Kg
Bag size (mm)	Length × Width × Height	single-row	Minimum: 120mm x 100mmx 20mm
			Maximum: 180mm x 180mmx 30mm
Packaging speed		Maximum: 80PPM
Bag volume		Maximum: 80ml
Expenditure of energy	electrical	8.0kw
	compressed air	80L/min 0.6Mpa
Voltage		200-415V/50-60Hz/N+G (customizable according to customer requirements)
noise		≤70dB
safe		CE standards

Electrical Configuration

GTS-2000
Standard electrical configuration:
order number	name	model	manufacturer
1	frequency conversion control system		Schneider
2	HMI Touch Control Operating System		Wilen
3	PLC navar		Mitsubishi
4	Servo motor and servo motion controller
4.1	servo motor		Panasonnic
4.2	servo motion controller		Panasonnic
5	electronic component		Schneider
6	temperature controller		ionizing radiation
7	photoelectric switch		Japanese vision
8	vacuum and sub-atmospheric system		German Beck
9	bearing		NSK and IGUS
10	spindle motor		Dragon
11	solenoid valve		Yadeke
12	Safety door switch		German Schmeiss
