Functions and features
1, easy to operate, using Japanese Mitsubishi CPU, matching touch screen and electrical control system.
2, safety device, abnormal air pressure is shutdown alarm.
3. The equipment is equipped with a bag opening detection device, which does not open the bag, fill or seal (to avoid material waste and pollution of the equipment).
4, glass safety door, open the door machine automatically stop, can protect the safety of the operator.At the same time, it can prevent dust.
5. The part in contact with the product is made of stainless steel or other materials that meet the requirements of food hygiene to ensure the hygiene of food.
 |  |  |  |

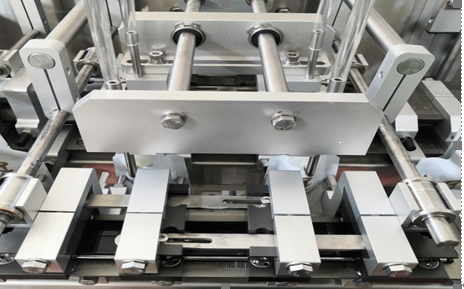

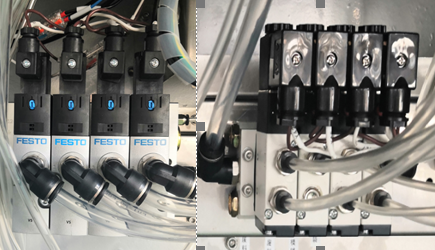

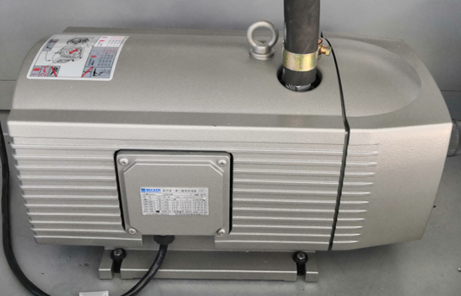

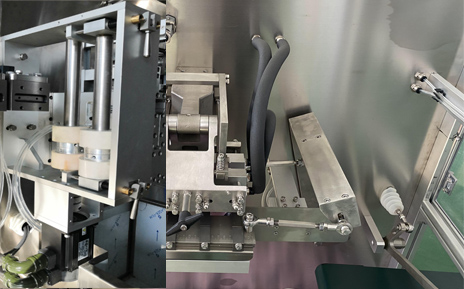

| Baker vacuum pump | Bag opening aid | Servo traction mechanism | Festo-Yadke solenoid valve |

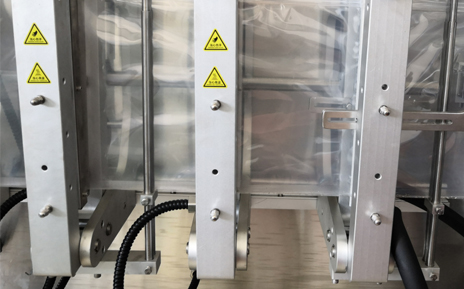

Vertical sealing device-for bag forming machine

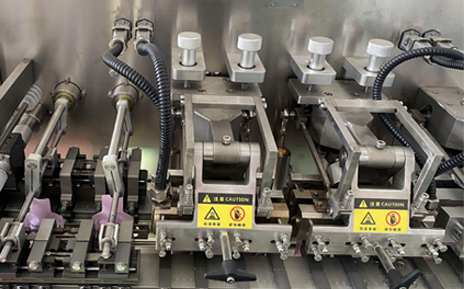

Top seal-Zipper seal-spout seal
Film correction system-for bag forming machine

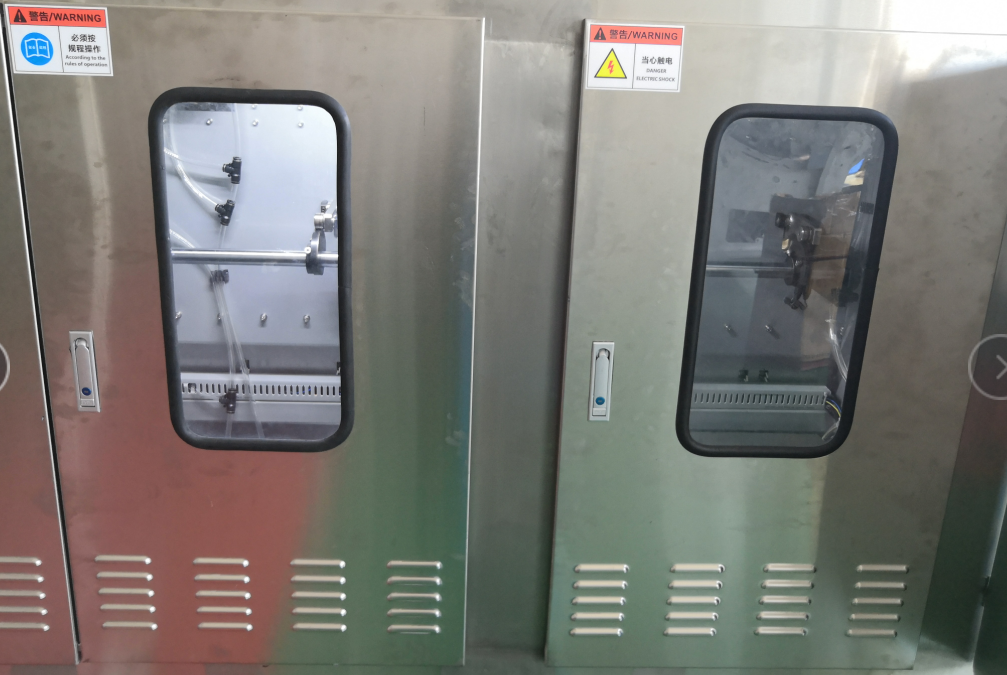

Visible cabinet door
Technical parameters of the equipment | |||
GTS-1600 | |||
Machine type | HFFS | premade bag feeding, filling, and sealing | |
Technology | bagging | pre-made bag | |
bag conveying | intermittence | ||
Structure | body frame | SS304 stainless steel | |
part | SS304 Stainless Steel and Aluminum Alloy | ||
Material that comes into contact with the material | Stainless steel SUS316 | ||
Filling station | 2 (with 1 heads) | ||
Machine size | Length × Width × Height | 3200×970×1390mm | |
Machine weight | 2000Kg | ||
Bag size (mm) | Length × Width × Height | single-row | Minimum: 80mm x 120mm |
Maximum: 160mm x 260mm | |||
Packaging speed | Maximum: 50-100PPM | ||
Bag volume | Maximum: 1000c.c | ||
Expenditure of energy | electrical | 8.0kw | |
compressed air | 80L/min 0.6Mpa | ||
Voltage | 200-415V/50-60Hz/N+G (customizable according to customer requirements) | ||
noise | ≤70dB | ||
safe | CE standards | ||
Electrical Configuration
GTS-1600 | |||
Standard electrical configuration: | |||
order number | name | model | manufacturer |
1 | frequency conversion control system | Schneider | |
2 | HMI Touch Control Operating System | Wilen | |
3 | PLC navar | Mitsubishi | |
4 | Servo motor and servo motion controller | ||
4.1 | servo motor | Panasonnic | |
4.2 | servo motion controller | Panasonnic | |
5 | electronic component | Schneider | |
6 | temperature controller | ionizing radiation | |
7 | photoelectric switch | Japanese vision | |
8 | vacuum and sub-atmospheric system | German Beck | |
9 | bearing | NSK and IGUS | |
10 | spindle motor | Dragon | |
11 | solenoid valve | Yadeke | |
12 | Safety door switch | German Schmeiss | |
