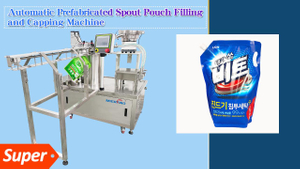

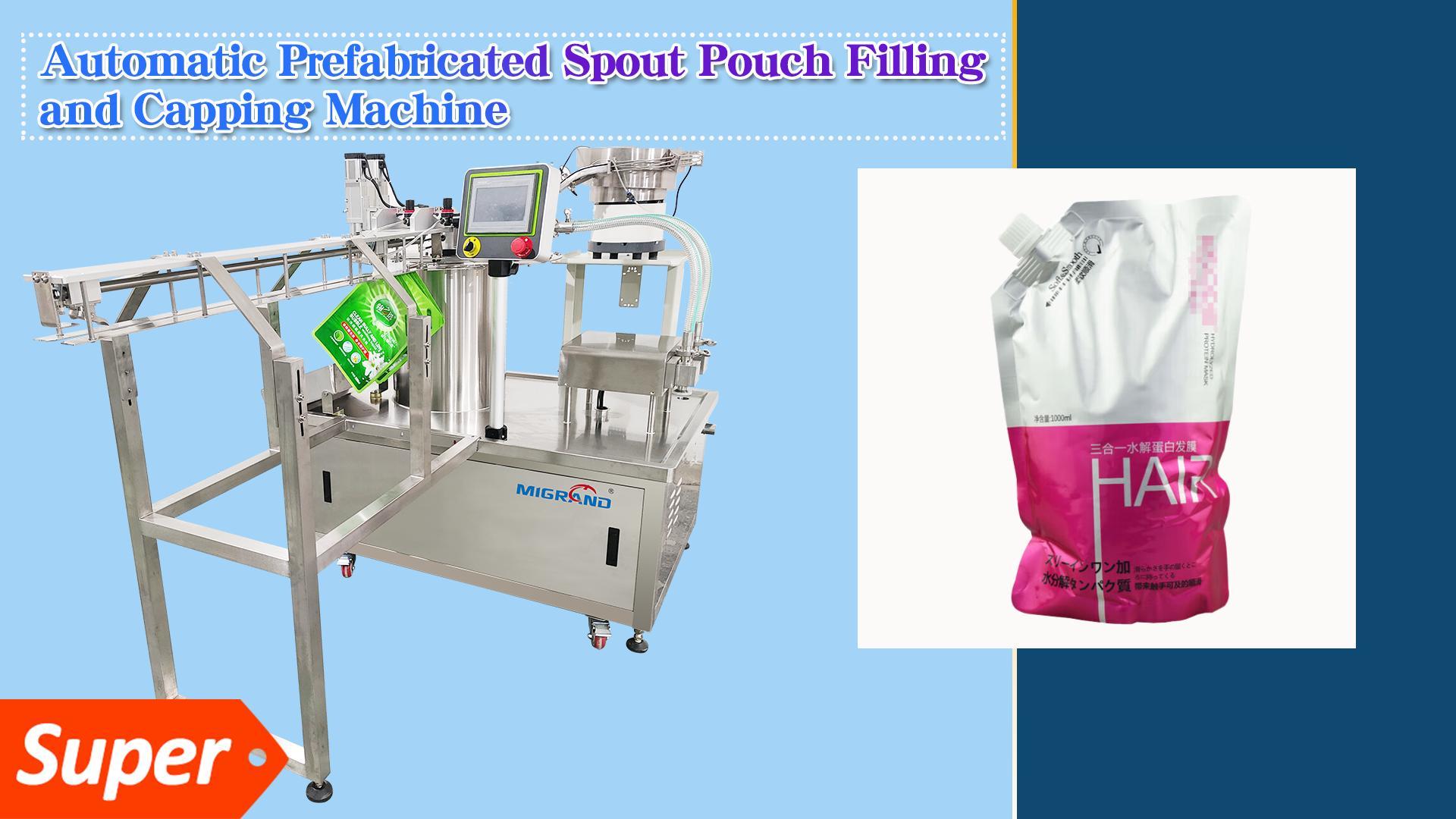

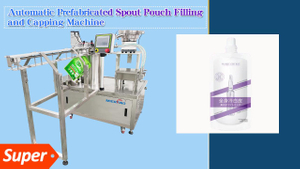

GDL02 Premade Doypack with Nozzle Filling Capping Machine

I. Equipment Features:

1. Applicability: Suitable for pouch packaging in the daily chemical and food industries, such as laundry detergent, shampoo, jelly, milk, etc.

2. User-Friendly Operation: Digital parameter adjustment; saved settings for similar pouches require only capacity adjustment.

3. High Efficiency: Fast filling speed with excellent stability. Each filling volume is independently controlled by a servo motor for high precision.

4. Easy Cleaning: Gear pumps, storage tanks, and filling heads feature clamp-type connections for tool-free disassembly and localized cleaning. An automatic cleaning button is integrated into the main control panel.

II. Technical Parameters:

1. Dimensions & Weight: 0.m (L) × 0.9m (W) × 0.7m (H); Weight: ~70kg.

2. Power Supply: 220V/50Hz; 2 kW.

3. Compressed Air Requirement: 0.5–0.8 MPa; Consumption: 0.5 m³/min.

4. Noise Level: ≤85 dB.

III. Operation Mode:

1 operator for bag hanging → automatic filling → manual/automatic cap placement → automatic screw capping.

IV. Capacity & Speed:

• Filling Range: 50–3000 g.

• Speed: 10–35 pouches/min (varies by filling volume and material).

• 2000 g: 10–15 pouches/min

• 1000 g: 15–25 pouches/min

• 50-450 g: 20–35 pouches/min

• Examples:

V. Filling Accuracy: ±0.5% (e.g., 100 ±0.5).

VI. Functional & Structural Description:

1. Bag Loading: Manual hanging.

2. Filling Method: Servo-driven magnetic gear pump for quantitative filling; self-priming.

3. Cap Placement: Manual/Automatic cap hanging via chute; vibratory bowl for cap alignment.

4. Capping Method: Servo claw-type screw capping with adjustable torque.

5. Discharge: Rotating automatic ejection with chute-guided collection.
